Piggy Back,Pigtail 10A AS/NZS 4417,3112 AC 2 Pole 3 Wire Plug
The Australian Piggy Back Power Cord | AS/NZS 3112 10A Plug with Outlet | SAA Certified | Pigtail Design is a versatile, high-quality extension solution tailored for Australian and New Zealand electrical systems. This SAA-approved piggyback cord features a robust Type I plug integrated with a built-in outlet, allowing seamless daisy-chaining while the pigtail end provides flexible connectivity for custom installations. Compliant with AS/NZS 3112 standards, it’s perfect for powering appliances, tools, and devices in residential, commercial, or industrial settings, offering reliable 10A Plug with Outlet performance and enhanced safety.
Technical Specifications
- Standard: AS/NZS 3112:2004 (Type I Plug Piggy Back)
- Rating: 10A, 250V AC, 50Hz
- Conductors: 3-wire grounding (copper material)
- Cable Type: H05VV-F 3G0.75-1.5mm² or H07VV-F 3G1.0-1.5mm²
- Certifications: SAA Certified, RoHS & REACH compliant
- Connector Options: Available with a wide range of IEC 60320 connectors including IEC 60320 C-5, C-13, C13 Right Angle, C13 Left Angle, C-13 Locking, C-15, C15 Right Angle , C-15 Locking, C-19, C19 Right Angle, C19 Locking
- Plug Type Piggy Back: 10A Plug with Outlet, non-rewirable
- End Design: Pigtail Design (stripped wires)Materials PVC sheath and insulation
- Operating Temperature: -10°C to 70°C (typical for PVC
- Applications: Australian Piggy Back Power Cord for extensions, appliances, industrial wiring
Customized Mains Power Leads Options
We specialize in providing custom-configured power cords to meet your specific project requirements. Options include:
- Custom Lengths: Specify the exact cable length you need.
- Custom Connectors: We can terminate the appliance end with various IEC connectors and custom made sockets.
- Custom Colors: Match your cable jacket color to your product’s design.
- Packaging: Available in bulk, individual poly-bags, or retail boxes
Regular Stripped, Splitter and ROJ
We manufacturers and supplies Australian AC Power Cords,custom color,the other end can be stripped, ROJ with custom length.
Common Termination
Australian New Zealand Mains Power Cables one end is molded with AS/NZ 3112 standard plugs, the opposite could be terminated with types of terminals such as grounding rings terminals ,fork with heat shrink or nylon insulated.
AU Plug Molded With IEC 60320 Connectors
Australia 10A 3-wire plug molded with custom lengths, colors, PVC, Rubber, Textile or LSZH cables connected with IEC 60320 standard connectors from straight, right angle, left angle, Top 90 degree, bottom angle to Locking IEC such as A-Locking, V-Locking, Z-Locking IEC receptacles, below listed are the most IEC 60320 sockets that we can produce with standard safety approvals.

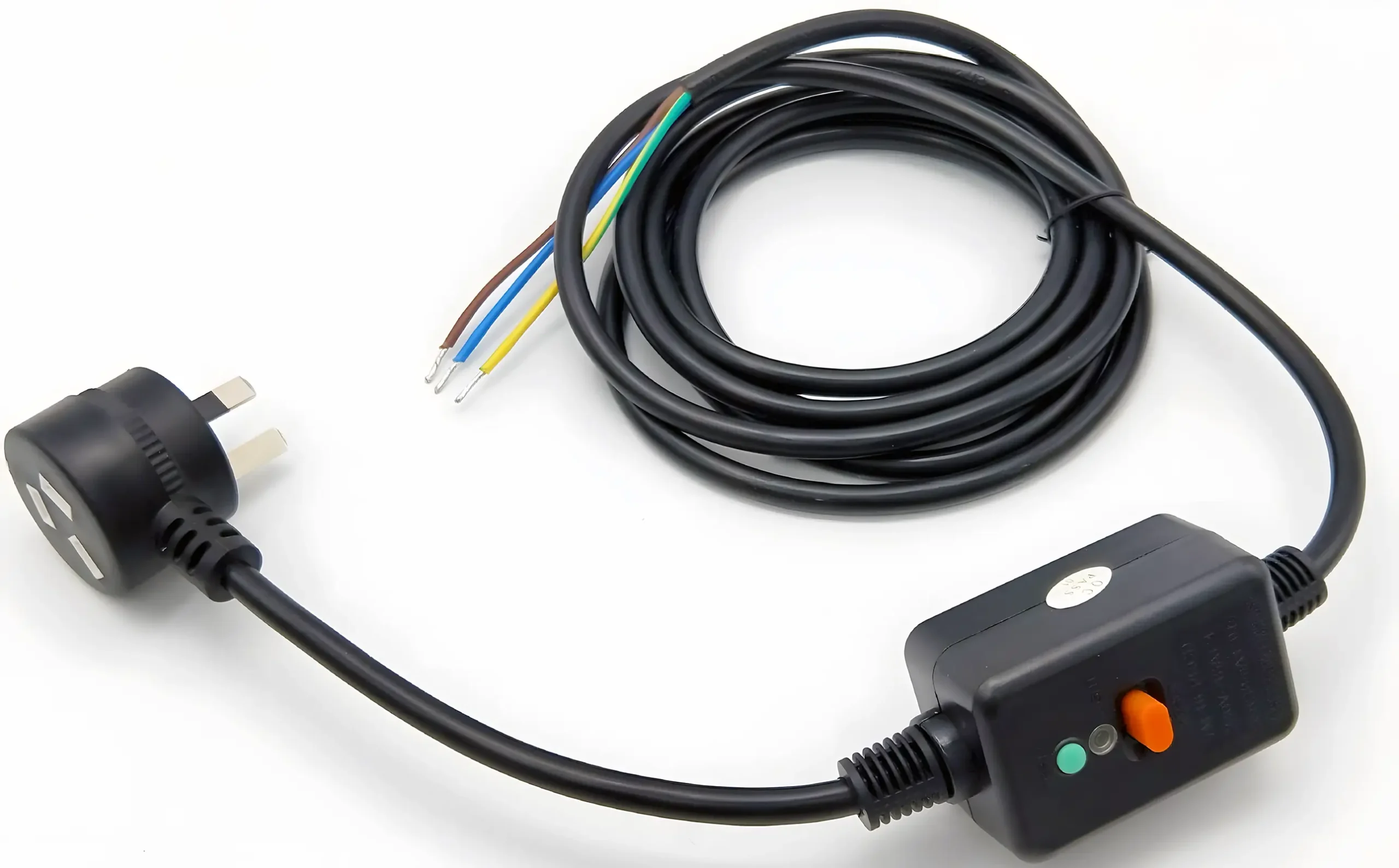

Leakage Protector Australian Piggy Back Power Cord with In-line GFCI
The AU standard Piggytail Plug with In-line Leakage Protector products, suitable for most the electrical appliances in Australian, 2-pole 3-wire power cord connecting with GFCI plug or In-line GFCI (Ground-Fault Circuit Interrupter) protection is a life-safety device that prevents electrocution by quickly cutting off power when it detects a ground fault.
Common Applications
This power cord is suitable for a wide range of applications, including: Computers and IT equipment, Monitors and displays, Printers and office equipment, Domestic appliances, Commercial and industrial equipment, Power supplies and adapters, Medical equipment (hospital-grade variants available)
Countries Where This Plug Is Used
The AS/NZS 3112 Type I plug is compatible with power outlets in:
- Australia
- New Zealand
- Fiji
- Tonga
- Solomon Islands
- Papua New Guinea
Note: While the plug physically fits, voltage differences (220V–240V) may exist between countries. Always verify that your appliance is compatible with the local voltage before use.
Australian Power Cord Manufacturer
Our Advantages as a Leading Power Cord Manufacturer.
With 15+ years as a dedicated power cord factory, we excel in producing appliance Power Cords with SAA that meet global demands:
- Guaranteed Market Access: Our SAA(RCM) certification eliminates compliance risks, speeding up your product approval process in Australian, New Zealand.
- Precision Manufacturing: Produced in our ISO 9001-certified facilities with stringent quality control, including continuity, hi-pot, and insulation resistance tests.
- Customization & Support: We offer OEM/ODM services for custom lengths, colors, and packaging. Benefit from rapid prototyping, low MOQs, and dedicated engineering support.
- Cost-Effective Sourcing: As a direct supplier, we provide competitive pricing without compromising on quality or safety.
2-year industrial warranty included; free samples for qualified OEMs. This SAA-certified custom mains power lead provides safe, efficient 10A connectivity for Australian modern low-power ecosystem. For samples, drawings, or modifications, specify your needs!
Cablesgo manufacturers and supplies electrical 📑 power supply cords for use in Australia, New Zealand and all Countries in the world. Our extensive and complete Australia power cord line includes power receptacle outlets, Plug, weatherproof receptacle outlets, sockets, multiple outlet power strips, power supply cords, power cable wire, and plug adapters. Contact us for Australia power cords as China leading Australia power cord manufacturer and supplier.all of Australia power cords are approved by SAA with Rohs and Reach compliant.
In Australia,the electricity supplied by the normal wall inlet is called the “mains power system” and therefore Australian power cords are often referred to as Australia mains leads, Australia mains cords, Australia mains cables, Australia line cords and mains power leads.
