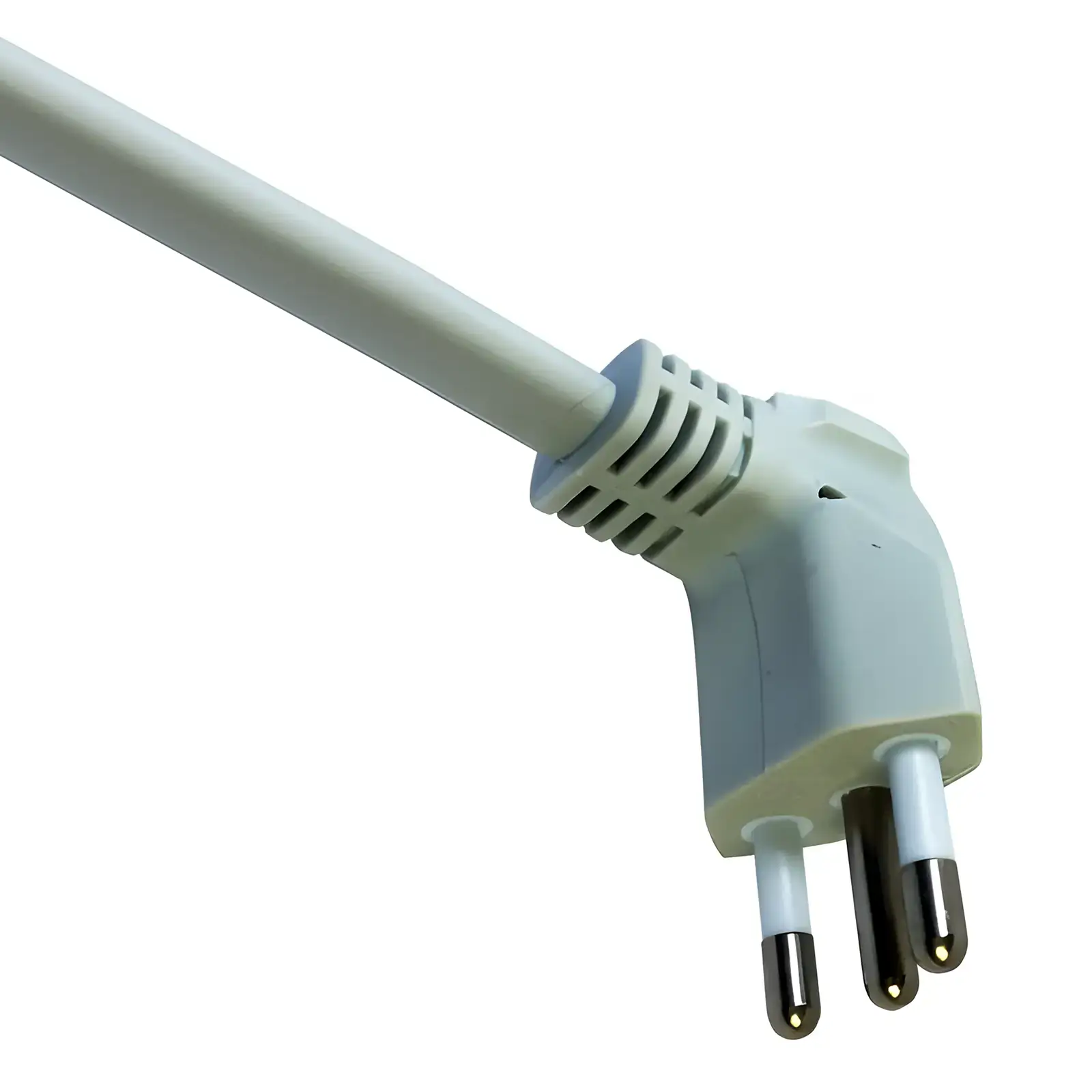

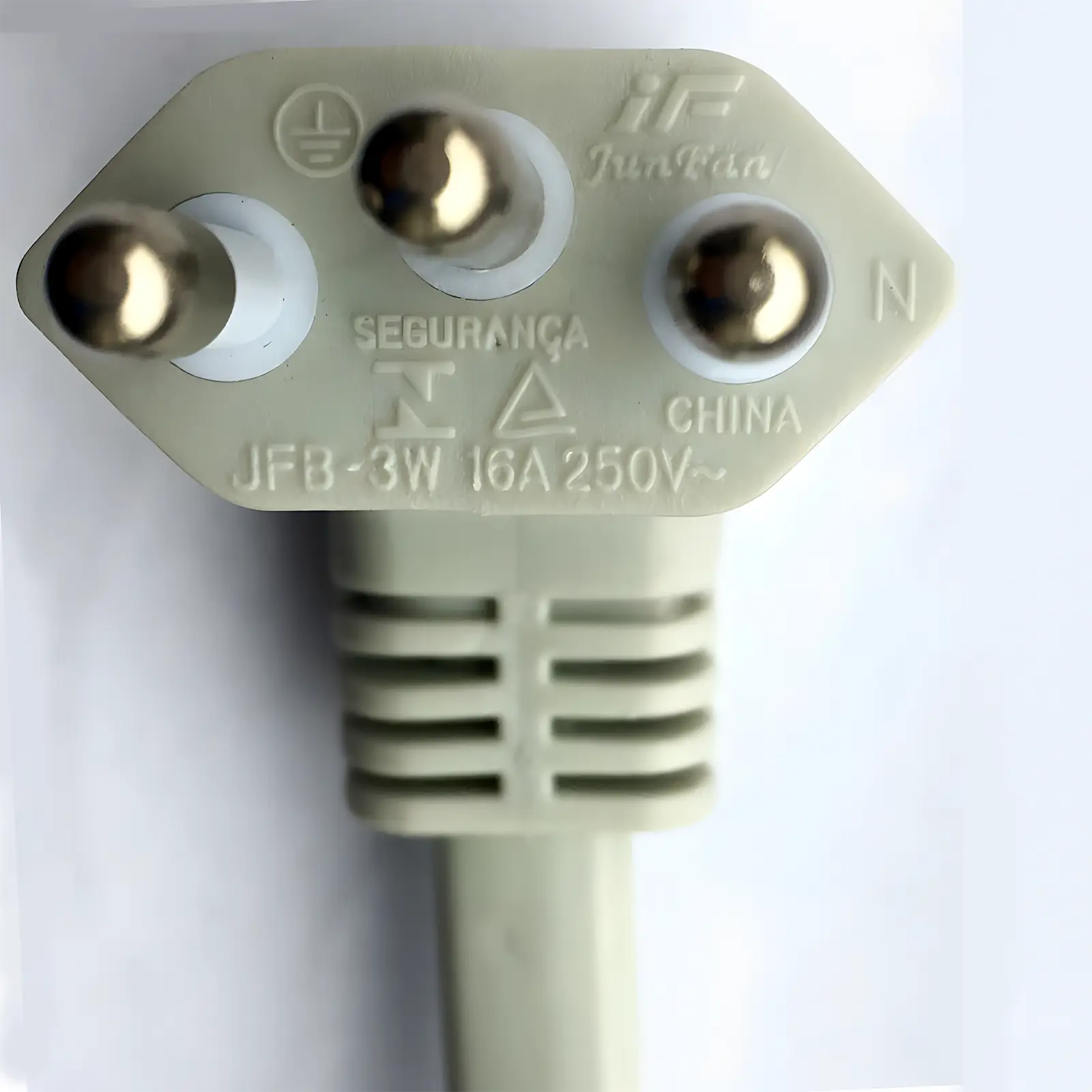

Angle Plug 2P+T NBR 14136, 12A, 16A, 20A Type N
This is a heavy-duty Brazil Power Cord 16A 2P+T (12A max 20A) designed specifically for the Brazilian market. It features a 2-pole + earth (ground) configuration, and complies with the Brazilian standard NBR 14136 (Type N plug). The cord carries mandatory INMETRO certification (Brazil’s national metrology institute) as well as voluntary TUV (Rheinland) safety approval, ensuring high reliability and compliance with international safety requirements.
Technical Specifications
- Plug Type: 2P+T Type N Plug
- Ratings: 12A, 16A, 20A 250V AC
- Configuration: 2-Pole + Earth (2P+T)
- Connector Options: Available with a wide range of IEC 60320 connectors including IEC 60320 C-5, C-13, C13 Right Angle, C13 Left Angle, C-13 Locking, C-15, C15 Right Angle , C-15 Locking, C-19, C19 Right Angle, C19 Locking
- Approvals: InMetro UC, TUV, RoHS, REACH
- Colors: Black White standard; custom available
- Applications: Grounded/un-grounded devices
- Operating Temperature: -10°C to +70°C
- Cable Length Options: Without fixed lengths, lengths are custom made

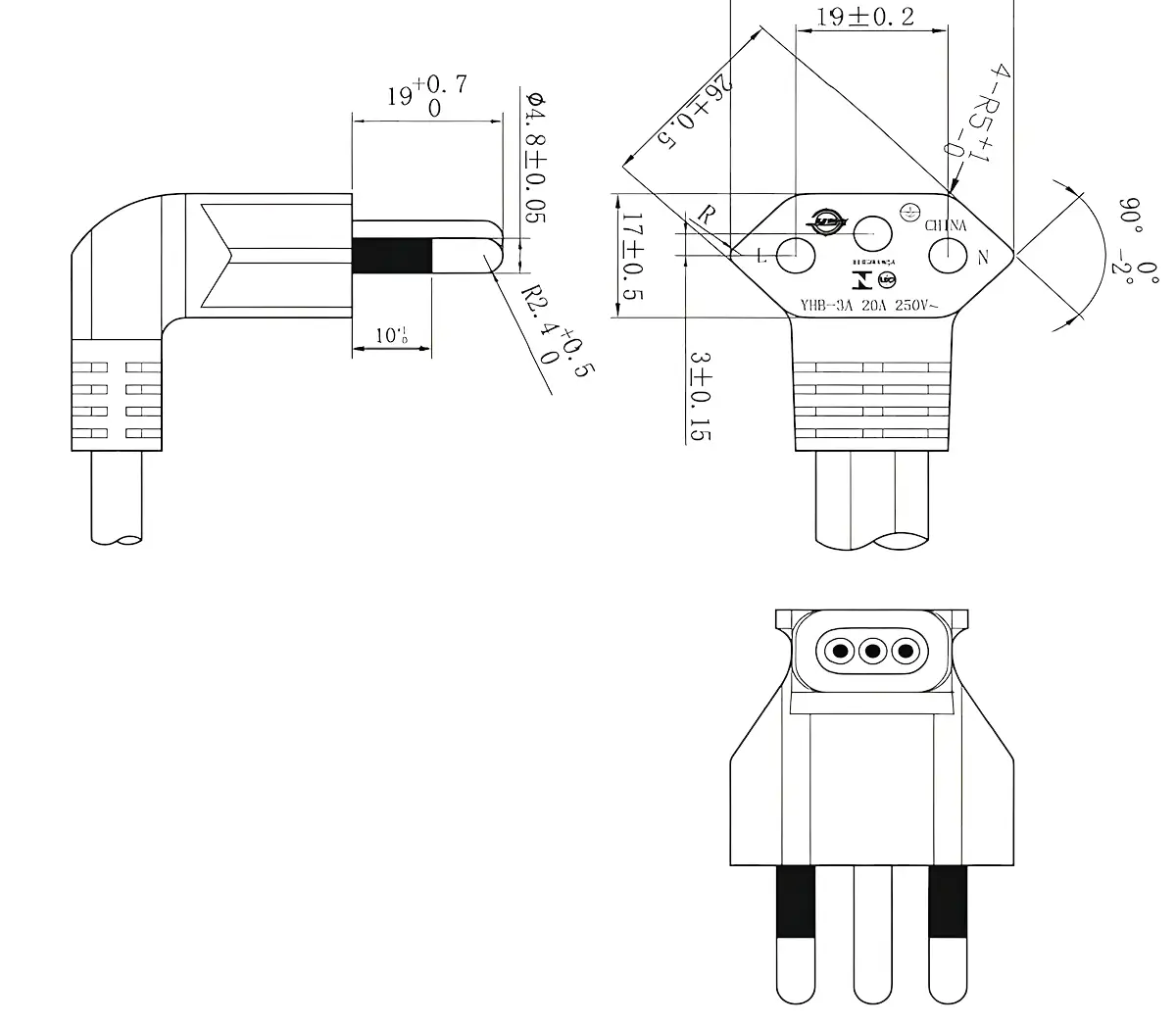

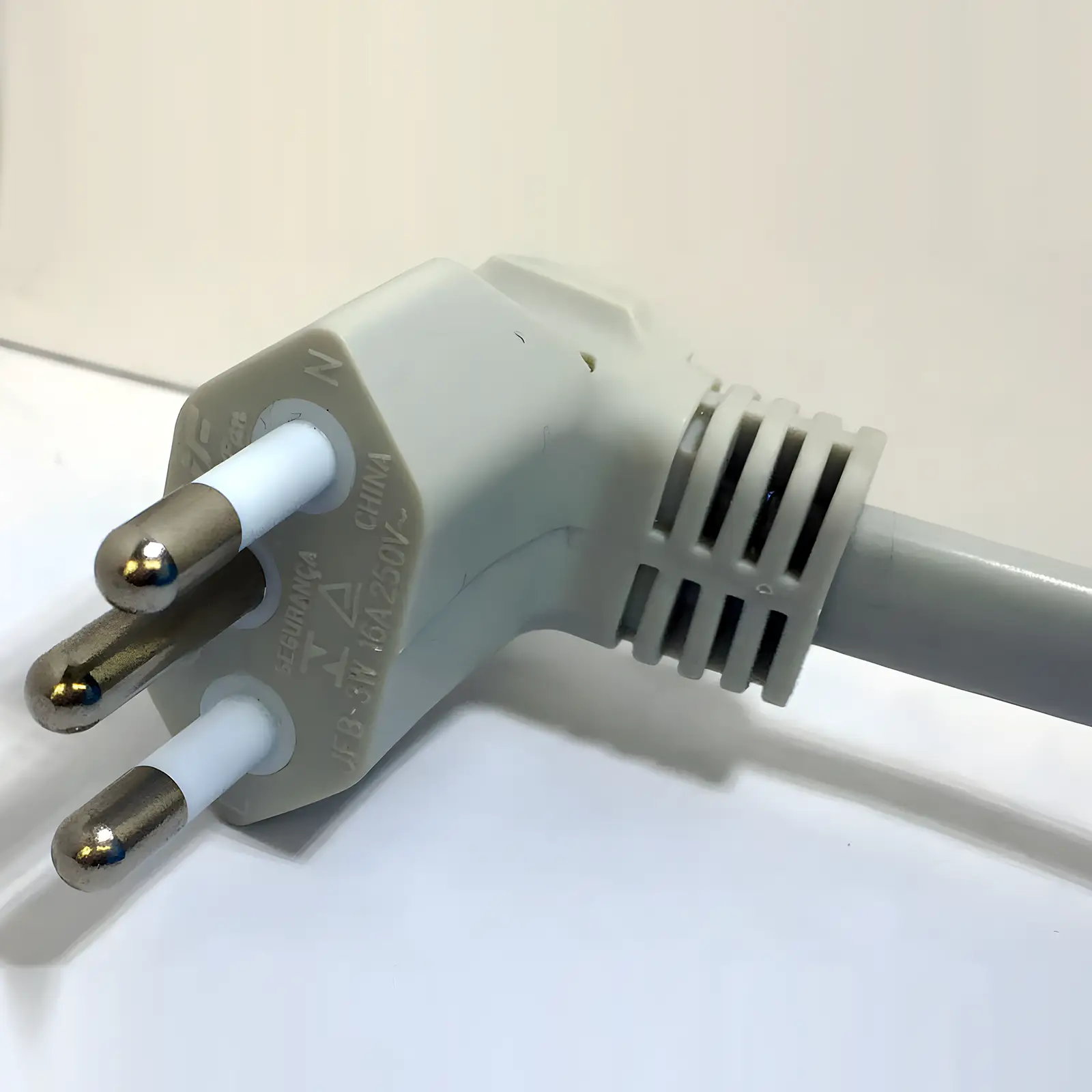

- Model Number: JFB-3W, YH-3A
Available Flexible Cables
This TUV certified Brazilian Power Cable 20A 2P+T with the flexible cables attached,The plug is in conformance with the standard ABNT NBR NM 60884-1:2010, if provided with the following cables:
| Rated Current (A) | Type of Cable | Nominal Section (mm2) |
| 12 | Circular Flexible Cable 300/500V H05VV-F 60227 IEC 53 Circular Flexible Cable 300/500V H05V2V2-F 60227 IEC 57 Circular Flexible Cable 300/500V H05RR-F 60245 IEC 53 Circular Flexible Cable 300/500V H05RN-F 60245 IEC 57 Circular Flexible Cable 450/750V H07RN-F 60245 IEC 66 Circular Flexible Cable – CSP – 105°C 300/500V – Class 5 |
3 x 1.0 |
| 16 | Circular Flexible Cable 300/500V H05VV-F 60227 IEC 53 Circular Flexible Cable 300/500V H05V2V2-F 60227 IEC 57 Circular Flexible Cable 300/500V H05RR-F 60245 IEC 53 Circular Flexible Cable 300/500V H05RN-F 60245 IEC 57 Circular Flexible Cable 450/750V H07RN-F 60245 IEC 66 Circular Flexible Cable – CSP – 105°C 300/500V – Class 5 |
3×1.5 |
| 20 | Circular Flexible Cable 300/500V H05VV-F 60227 IEC 53 Circular Flexible Cable 300/500V H05V2V2-F 60227 IEC 57 Circular Flexible Cable 300/500V H05RR-F 60245 IEC 53 Circular Flexible Cable 300/500V H05RN-F 60245 IEC 57 Circular Flexible Cable 450/750V H07RN-F 60245 IEC 66 Circular Flexible Cable – CSP – 105°C 300/500V – Class 5 |
3 x 2.5 |
Customized Power Cords Options
These Cablesgo Brazilian Brazil Power Cord 20A 2P+T Tailor-Made Power Cords for Your Unique Applications. As a professional manufacturer, we offer comprehensive OEM/ODM services: Custom Lengths, Colors, Terminations – ROJ, or Various IEC connectors, Custom Packaging, custom requirements by modifying every element—from plug types like right-angle or waterproof designs to cable materials including PVC, Rubber, TPE, Textile, Spring Coiled Power Cord and LSZH (Low Smoke Zero Halogen Free). We ensure a perfect fit and function with custom strain reliefs. Partner with us for a cord that seamlessly integrates with your appliance.

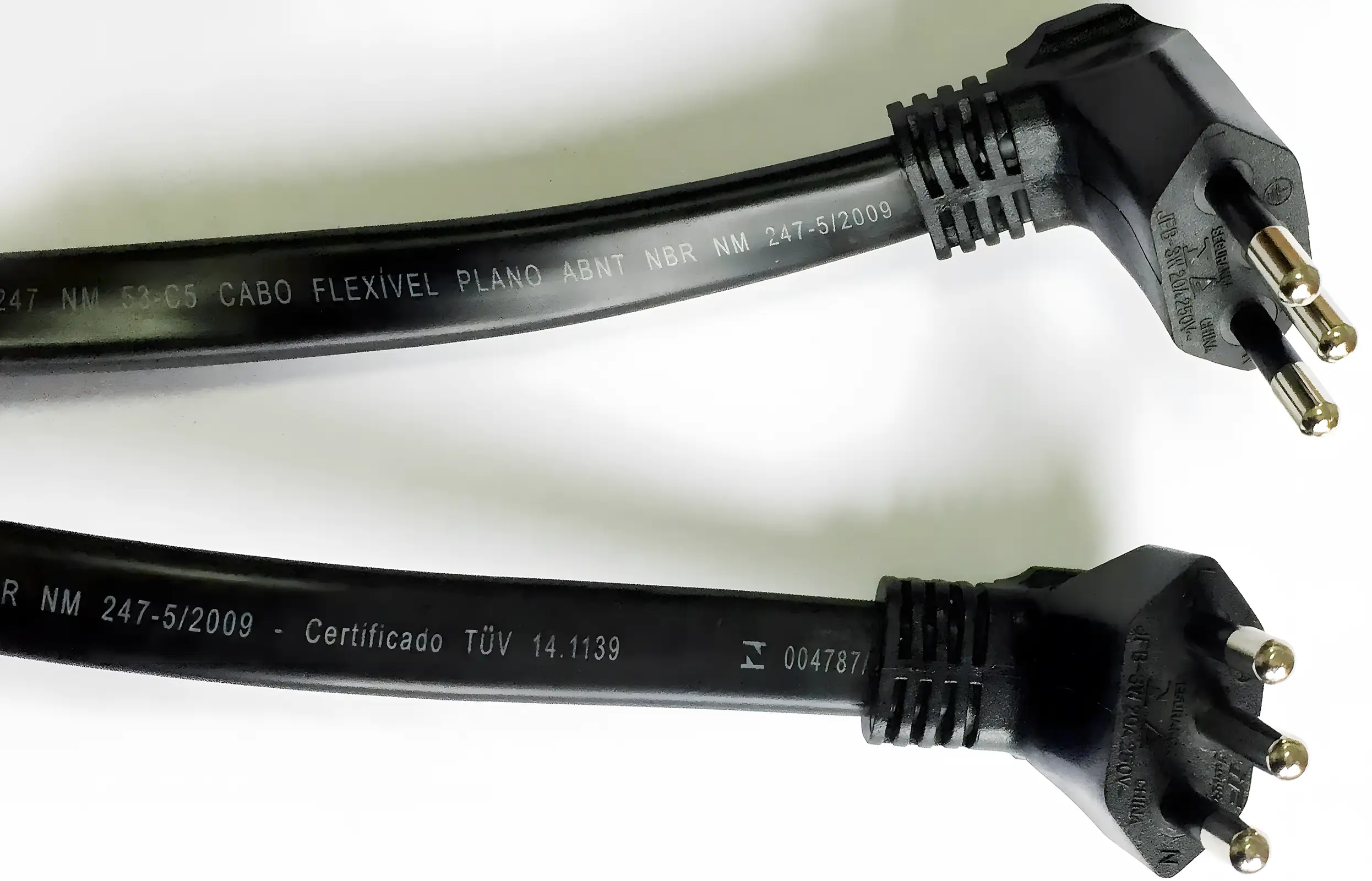

Brazil 2P+T 20A Plug Variants
Brazilian Power Cable 20A 2P+T Regular Stripped, Splitter and ROJ
We manufacturers and supplies Brazil Power Cord 20A 2P+T,custom length flexible cables, the other end can be stripped ,ROJ with custom length.

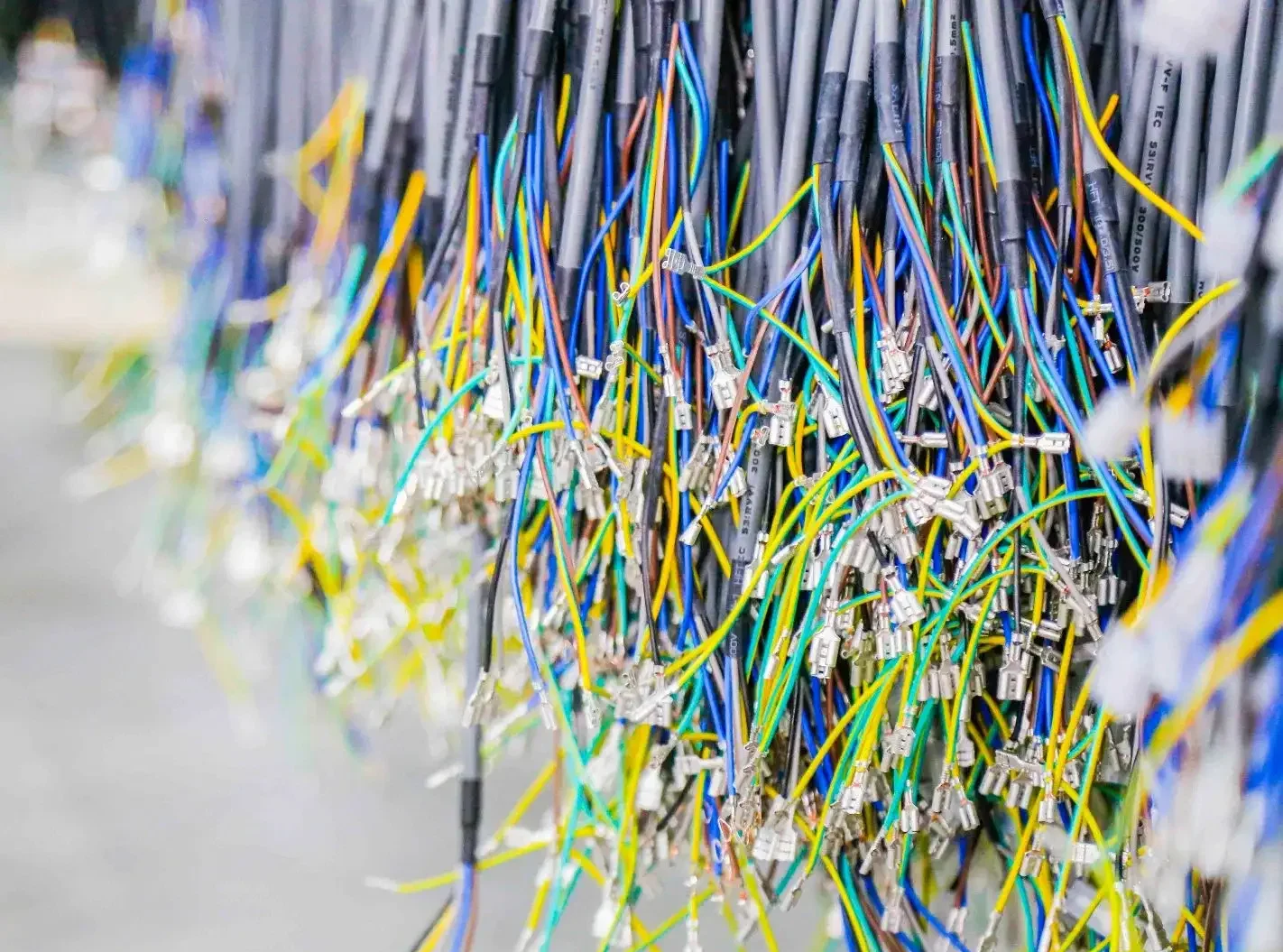

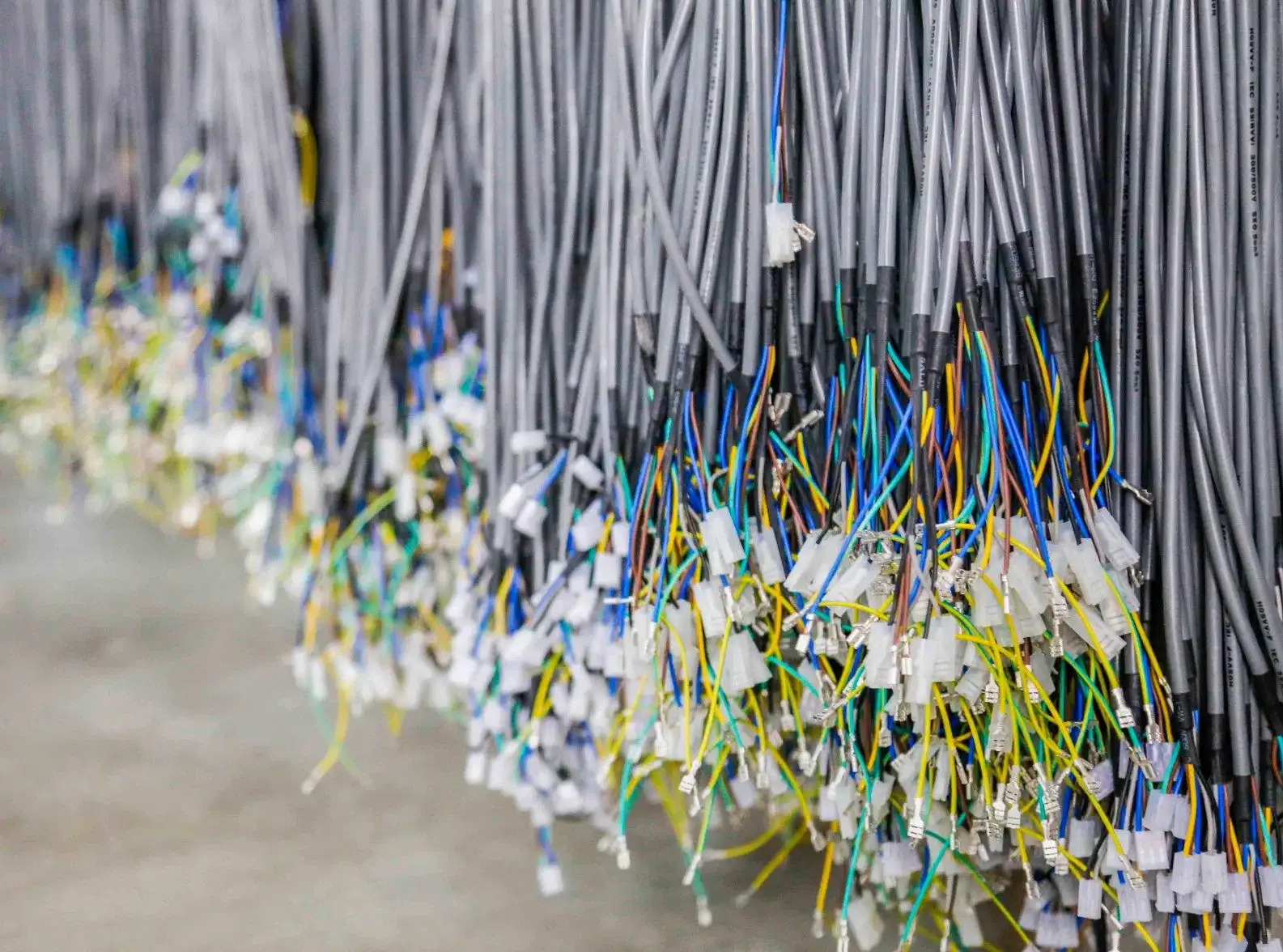

Common Termination
Brazilian Power Cable 20A 2P+T one end is molded with INMETRO Approved NBR 14136 Type N 2P+T options 20A (12A, 16A options) plugs, the opposite could be terminated with types of terminals such as grounding rings terminals, fork with heat shrink, or nylon insulated. Provide us with your terminal model and specifications, and we will handle the rest. We source exact components from leading manufacturers like TE Connectivity and Molex or identify high-quality equivalents. Every connection we deliver is built to last and rigorously tested to pass all required pull tests.Terminal,Strip and retain,Blunt cut wire,Tinning Brazilian AC Power Cords.

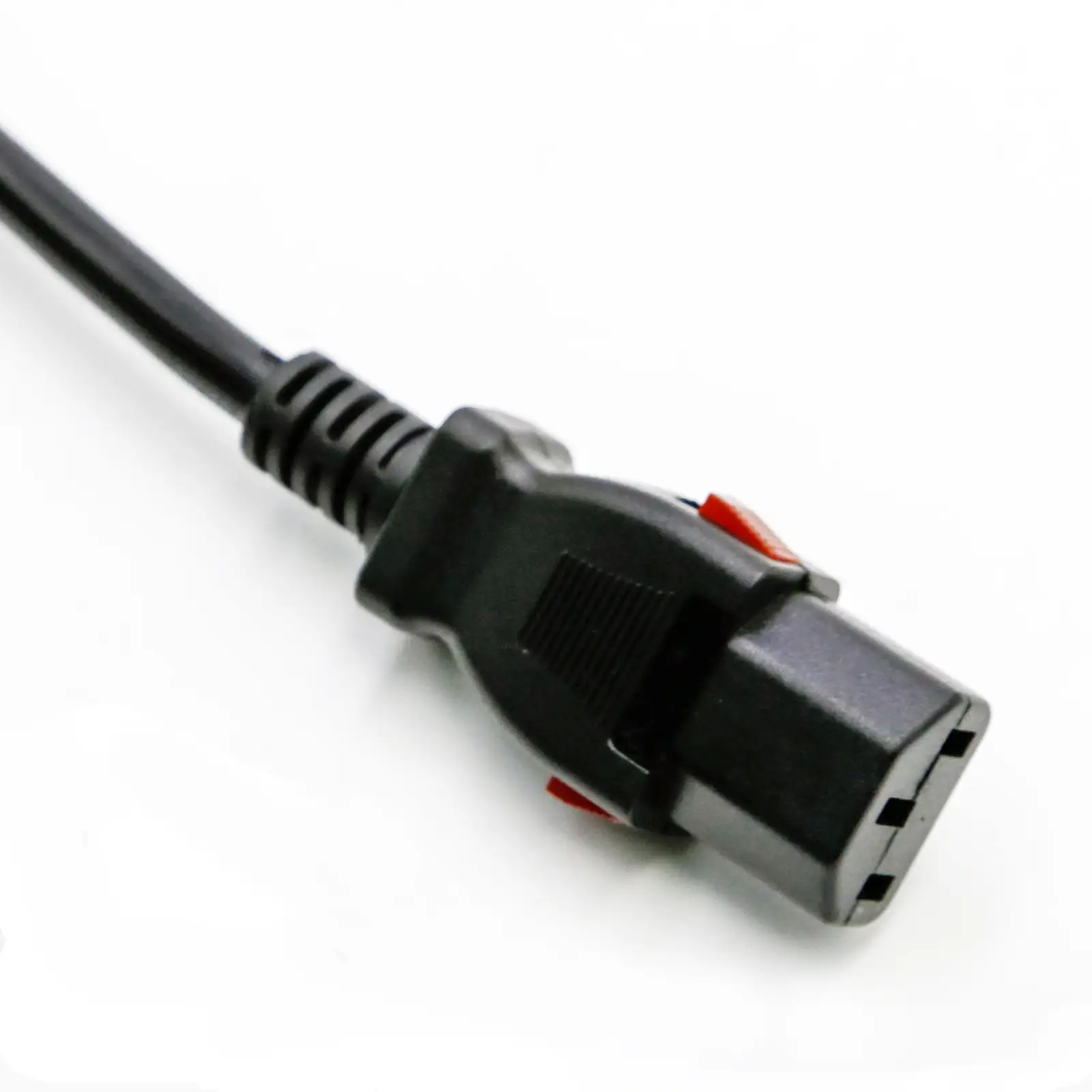

Brazilian Power Cable 20A 2P+T With IEC 60320 Connectors
Brazilian Power Cable 20A 2P+T NBR 14136, 12, 16, 20A, 3-Conductor with Grounding Type N Plug, Inmetro & TUV Approved Power Supply Cord Sets to Connector, Standards Brazil 3-wire grounding plug max rated at 20 A, 250 V defined by Inmetro molded with custom lengths, colors, PVC, Rubber, Textile, or PU Spring Coiled Power Cable or LSZH cables connected with IEC 60320 standard connectors from straight, right angle, left angle, Top 90 degree, bottom angle to Locking IEC such as A-Locking, V-Locking, Z-Locking IEC receptacles, Brazil plug to IEC C5, Brazil Plug to IEC C13, Brazil plug to IEC C15, Brazil Plug to IEC C19 are the common items, below listed are the most IEC 60320 Connectors that we can produce with standard safety approvals.
Common Applications
Industrial equipment and machinery, Data center servers and racks, Medical equipment, Power tools and workshop equipment, High-power kitchen appliances, Professional audio/video systems
Why Choose Our Brazilian NBR 14136 Power Cords?
Our Advantages as a Leading Power Cord Manufacturer

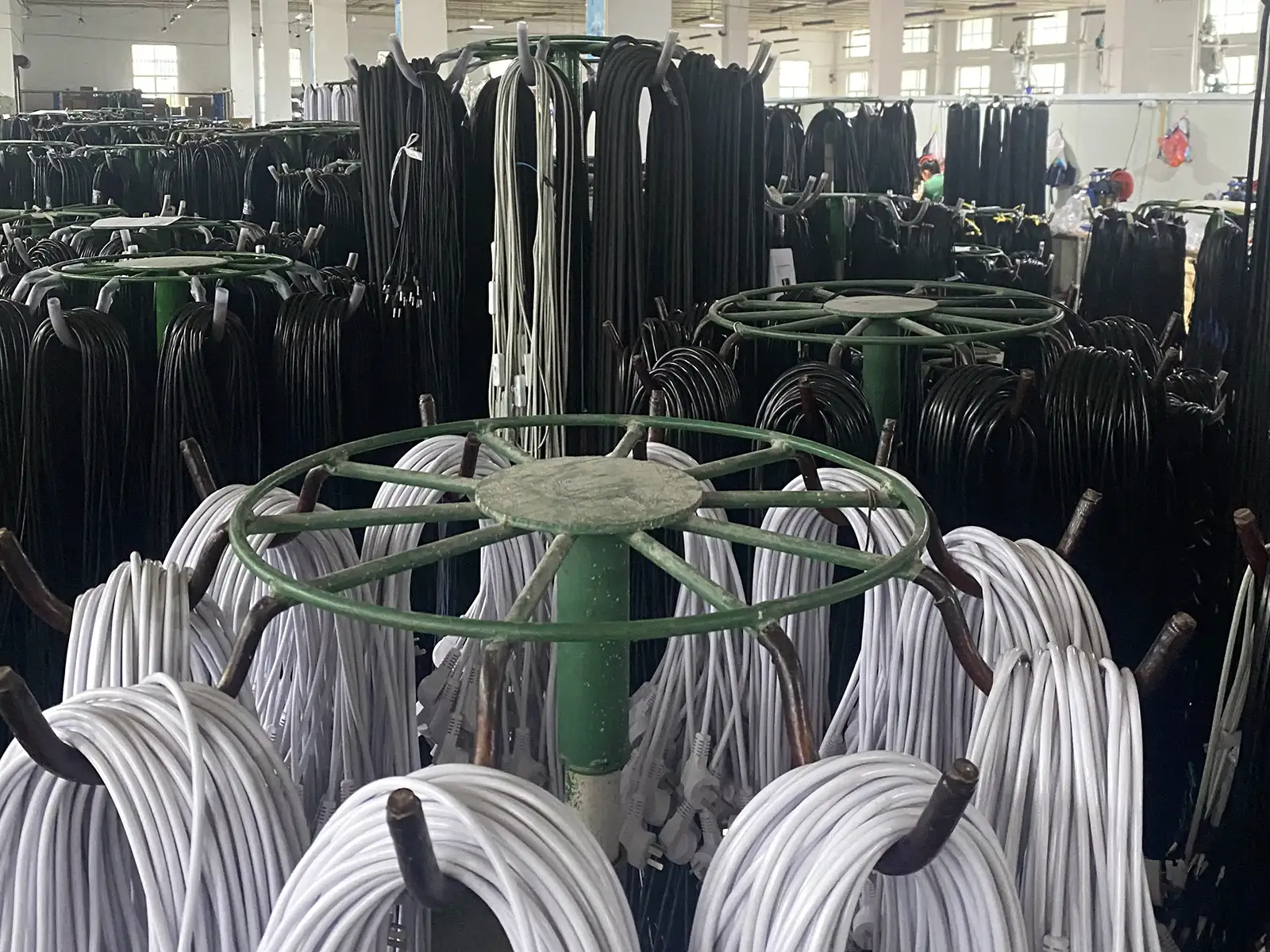

With 15+ years as a dedicated power cord factory, we excel in producing appliance Brazilian Power Cords with Inmetro
- Direct manufacturer pricing
- Full compliance with Brazilian regulations
- Custom engineering support available
- 24-month quality guarantee
- Experienced in serving major Brazilian importers
Cablesgo manufacturers and supplies electrical AC power supply cords for use in Brazil and all Countries in the world. Our extensive and complete Brazil power cord line includes power receptacle outlets, Plug, weatherproof receptacle outlets, sockets, multiple outlet power strips, power supply cords, power cable wire, and plug adapters. Contact us for Brazil AC power cords as China leading Brazil power cord manufacturer and supplier.all of Brazil AC power cables are approved by Inmetro or TUV and Rohs / Reach compliant.
For pricing / samples and technical datasheets, please contact our sales engineering team. We specialize in creating custom power solutions for the Brazilian market.
