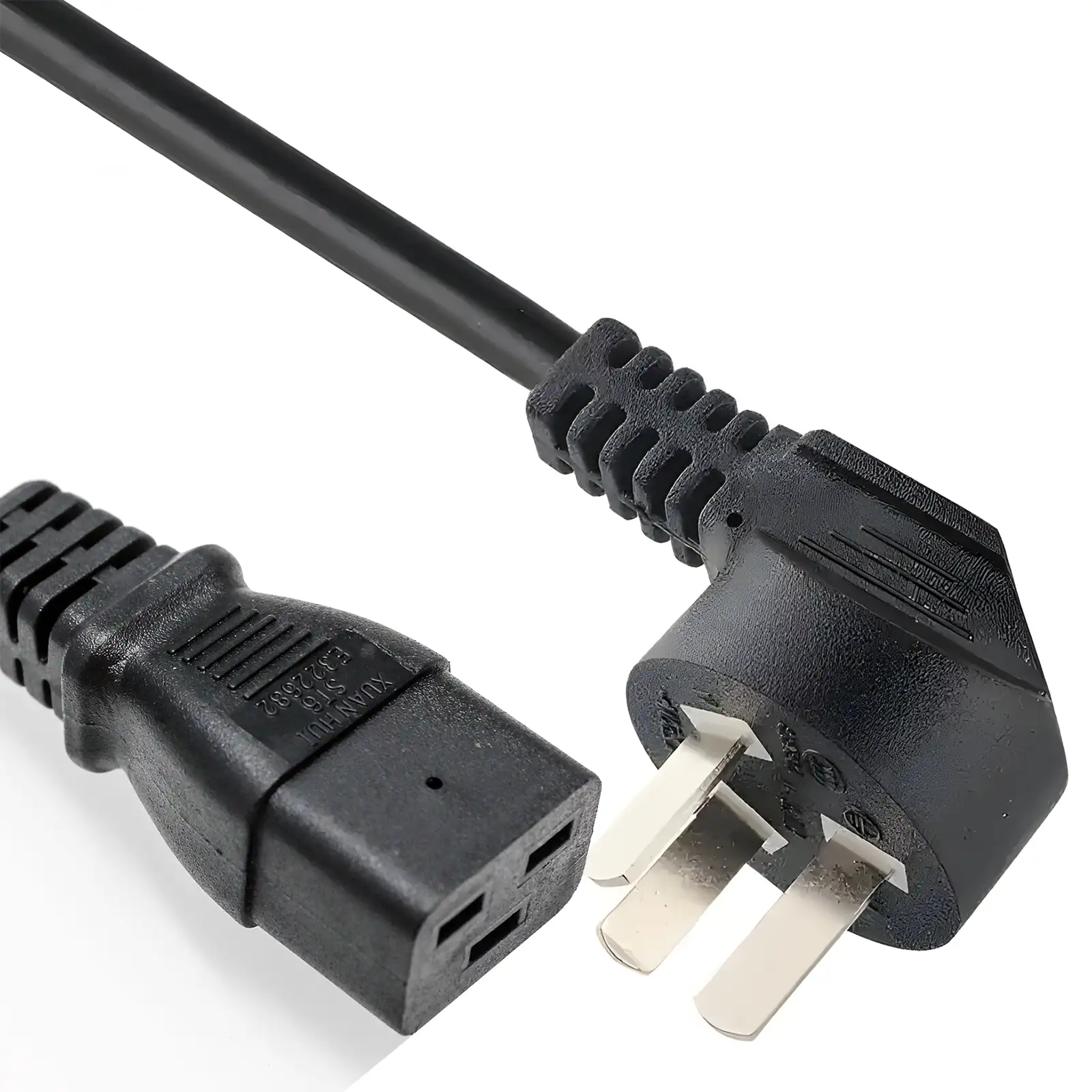

China Plug IEC C19 AC Power Cords
China Plug IEC 60320 C19 Power Cord made by China Plug Type I GB 2099 Molded with Custom lengths, Colors Flexible Power Cables from PVC to Rubber, TPE, PU Coiled Spring Cable and Textile Braid Material Types, The End Connected with IEC 60320 C19 Receptacle high-performance power cords are engineered to deliver reliable, high-amperage power in demanding environments like Data centers, Power Distribution Units (PDUs) and Uninterruptible Power Supplies (UPS), Server rooms, and Broadcast studios.
Technical Specifications:
- Plug (Input): GB 2099 3 Wire China Plug 10A
- Connector (Output): IEC 60320 C19 (Female)
- Rated Voltage/Current: 250V AC, 10A
- Temperature Rating: -40°C to +70°C (Standard) / Higher temp options available
- Cable Type: PVC, Rubber, TPE, Textile Braid, PU Coiling Flexible Cables
- Cable Length Options: Custom flexible cable length from 0.3m to 10m+
- Colors: Black White standard; custom available
- Conductor: 3 x 1.0mm² to 3 x 2.5mm² (Fine stranded copper for flexibility)
- Approvals: CCC, ROHS and Reach
- Model Number: PSB-10 / ST6
Customization Options
We manufacture custom Schuko plug to IEC 60320 C9 power cords as customers request from plug to flexible cable and receptacles as below:
- Plug: China 3-wire plug 10A, or ( Custom straight 10A plug )
- Connector: IEC 60320 C19 straight or Angle IEC C19, Locking IEC C19 connectors are available.
- Color: Standard black or white. Gray and custom colors are available upon request.
- Flexible Cable: PVC, Rubber, Halogen-Free, or Textile Braid, Spring Coiled PU cables are available.
- Features: Options include inline switches or Leakage Protector Plug ,inline GFCI (RCD) modules for added safety.
- Packaging and bulk production—consult manufacturer; minimum order quantity varies by specs.
Available IEC C19 Variants
IEC 60320 C19 Receptacle Straight focused, Right Angle IEC C19, Locking IEC C19 available.
Primary Applications:
The China Plug IEC C19 AC Power Cords is a high-performance server-grade power cable engineered for demanding IT and industrial environments and more including: Data Center Server Racks, Power Distribution Units (PDUs), Uninterruptible Power Supplies (UPS), High-Power Network Switches & Enterprise Networking Equipment, Server Rooms & IT Installations, Industrial Workstations & Manufacturing Environments, Professional Audio/Video & Broadcast Equipment, Medical Equipment, Communications & Telecommunications Infrastructure
Why Choose Our China Plug IEC C19 AC Power Cords ?
Our Advantages as a Leading Power Cord Manufacturer
With 15+ years as a dedicated power cord factory, we excel in producing China standard AC Power Cords.
- Guaranteed Market Access: Our CCC certification eliminates compliance risks, speeding up your product approval process in China
- Precision Manufacturing: Produced in our ISO 9001-certified facilities with stringent quality control, including continuity, hi-pot, and insulation resistance tests.
- Customization & Support: We offer OEM/ODM services for custom lengths, colors, and packaging. Benefit from rapid prototyping, low MOQs, and dedicated engineering support.
- Cost-Effective Sourcing: As a direct manufacturer, we provide competitive pricing without compromising on quality or safety.
Buy Direct from Factory & Save – Cablesgo manufacturers and supplies electrical AC power supply cords for use in China and all Countries in the world. Our extensive and complete Chinese Power Cables line includes power receptacle outlets, Plug, weatherproof receptacle outlets, sockets, multiple outlet power strips, power supply cords, power cable wire, and plug adapters. Contact us for China CCC approved AC power cords as China leading China power cord manufacturer and supplier.all of our China power supply cords are made of high quality approved by CCC with Rohs and Reach compliant.
