IEC 60320 C20 Power Cords
European IEC C20 to C19 Power Cable
PDU Power Cord IEC C19 to C20
IEC 60320 appliance cables

UL/VDE/PSE/CCC/SAA Certified IEC 60320 C20 Power Cords | Custom Power Cables

  • Global Compliance: Multi-certification ensures plug-and-play compatibility in diverse markets, from data centers in the US (UL/cUL) to industrial setups in Asia (PSE/CCC) and Australia (SAA).
  • Robust Construction: Flame-retardant PVC jacket (UL 94V-2 rated) resists abrasion, oil, and environmental hazards; nickel-plated contacts prevent corrosion and arcing.
  • Flexible Design: Stranded copper conductors with ergonomic molded ends provide excellent bend radius and strain relief for easy routing in tight rack spaces.
  • Enhanced Safety: Grounded 3-wire configuration with integrated locking options (P-Lock/V-Lock) for secure connections in vibration-prone environments.
  • Devices: Optimized for high-wattage equipment including rack servers, blade systems, PDUs, UPS units, storage arrays, and networking hardware with IEC C19 inlets (up to 16A/3680W loads).
  • Extensions: Seamlessly connects C20 outlets to C19 inlets, ideal for daisy-chaining power strips or extending reach in server rooms.
  • Not Recommended For: Low-power consumer devices or extreme temperatures beyond 70°C (cord limit); use locking variants for high-vibration applications.
Category:
Share:

IEC C20 Receptacle Custom Power Cable

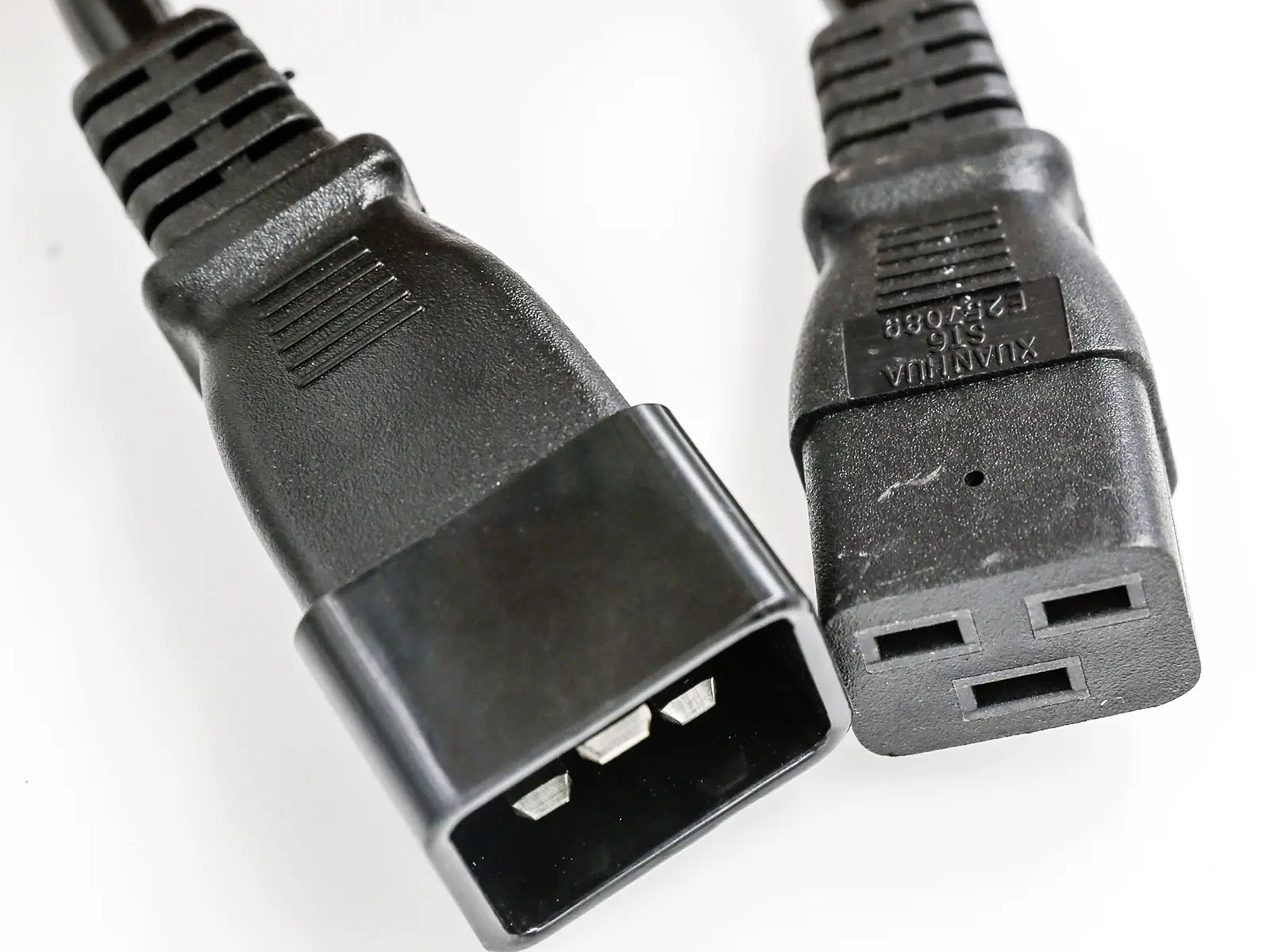

The UL/VDE/PSE/CCC/SAA Certified IEC 60320 C20 Power Cords are premium, multi-regionally approved AC extension cables designed for high-power IT and data center applications worldwide. Featuring a rugged IEC 60320 C20 male plug on one end and an IEC 60320 C19 female connector on the other, these cords support up to 16A loads for connecting servers, PDUs, UPS systems, and rack equipment. Engineered with flexible H05VV-F or equivalent SJT wiring and stranded copper conductors, they ensure optimal performance in demanding environments up to 70°C. Fully compliant with global safety standards, these cords are ideal for international deployments, with custom lengths, colors, and locking options available for OEM, wholesale, or enterprise needs.

Technical Specifications

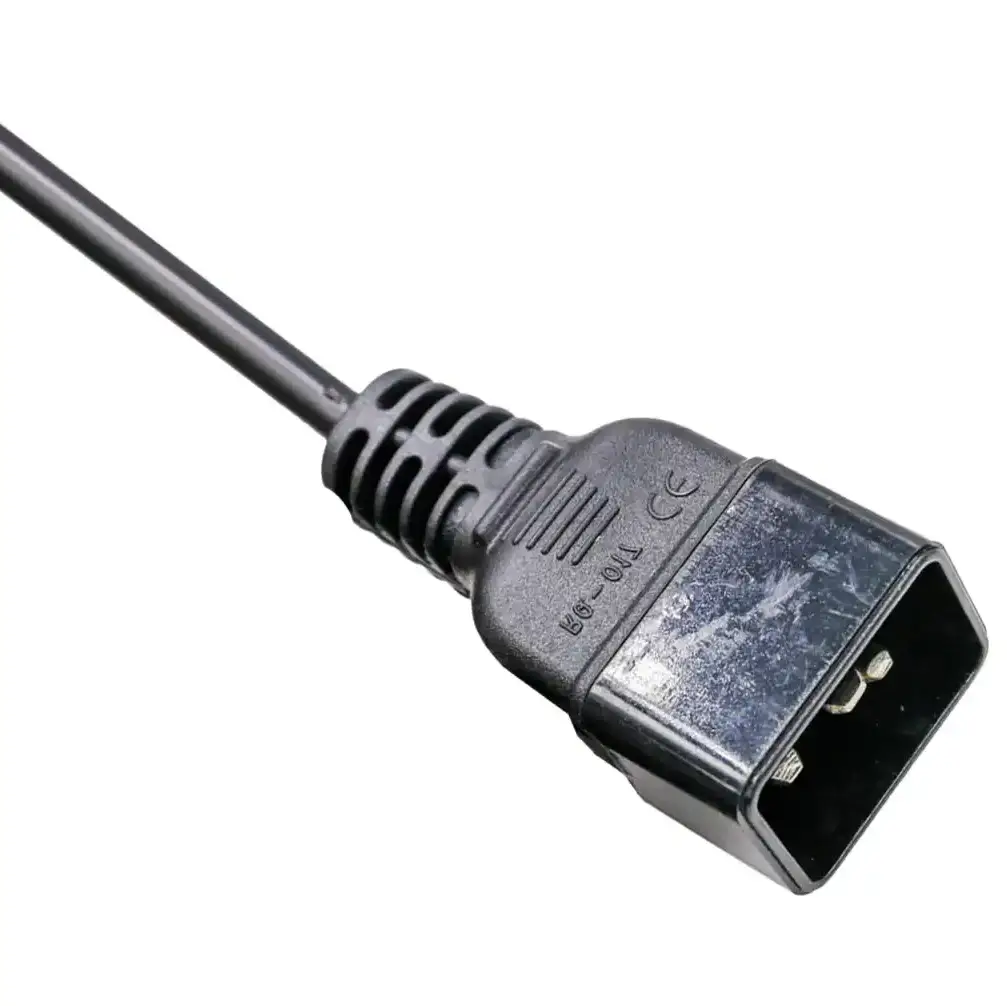

  • Plug type: IEC 320 C20 Plug
  • Approvals: CCC, VDE, CE, SAA,PSE,UL, cUL
  • Electricity: 16A / 250V AC; (125V)
  • Number of Poles and Wires:2-poles-3-wires earthed
  • Cable length:1.0 meter, 1.5m, 1.8m,custom length

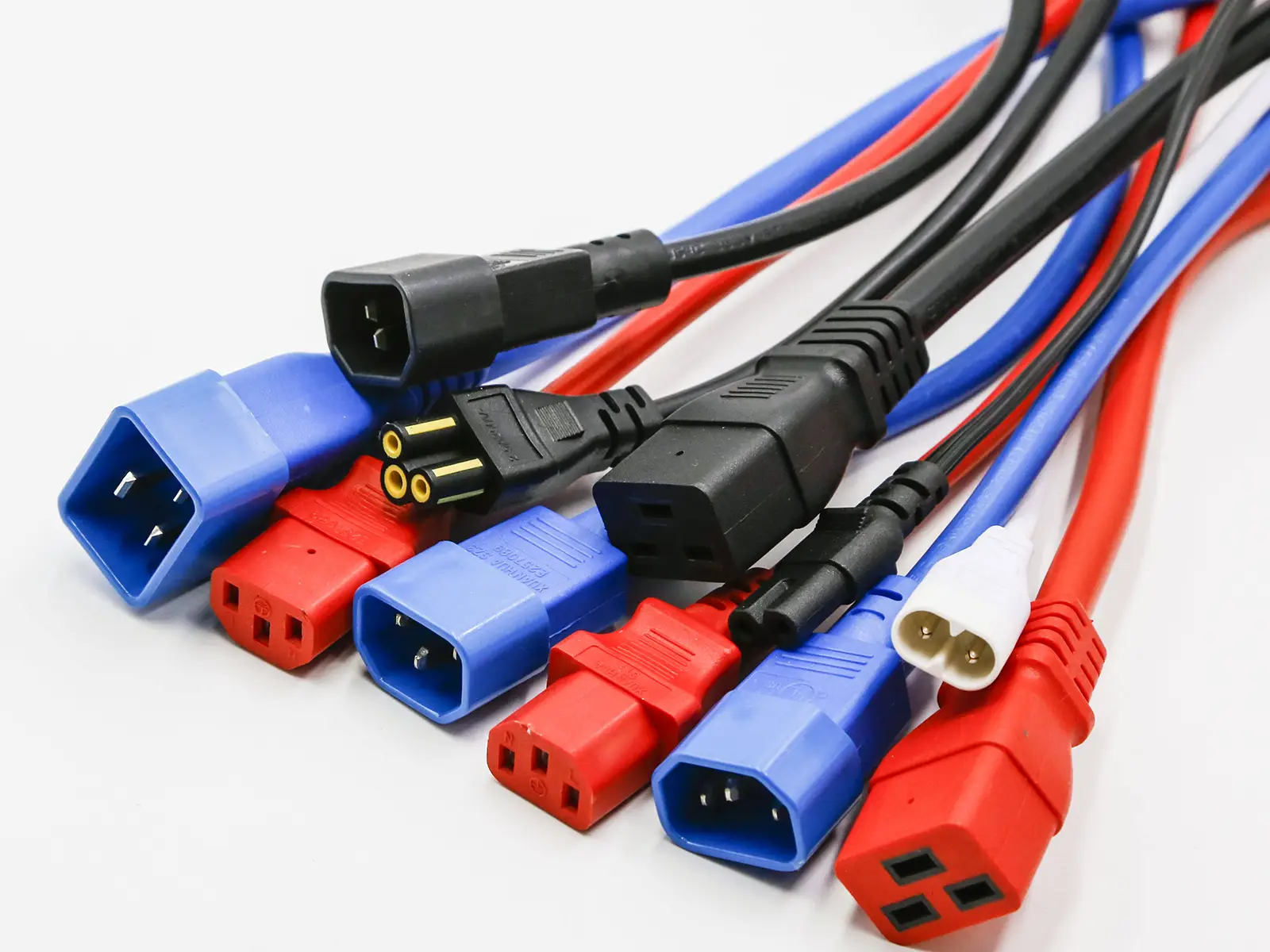

  • End Options: ROJ, Termination, IEC 320 13,C19

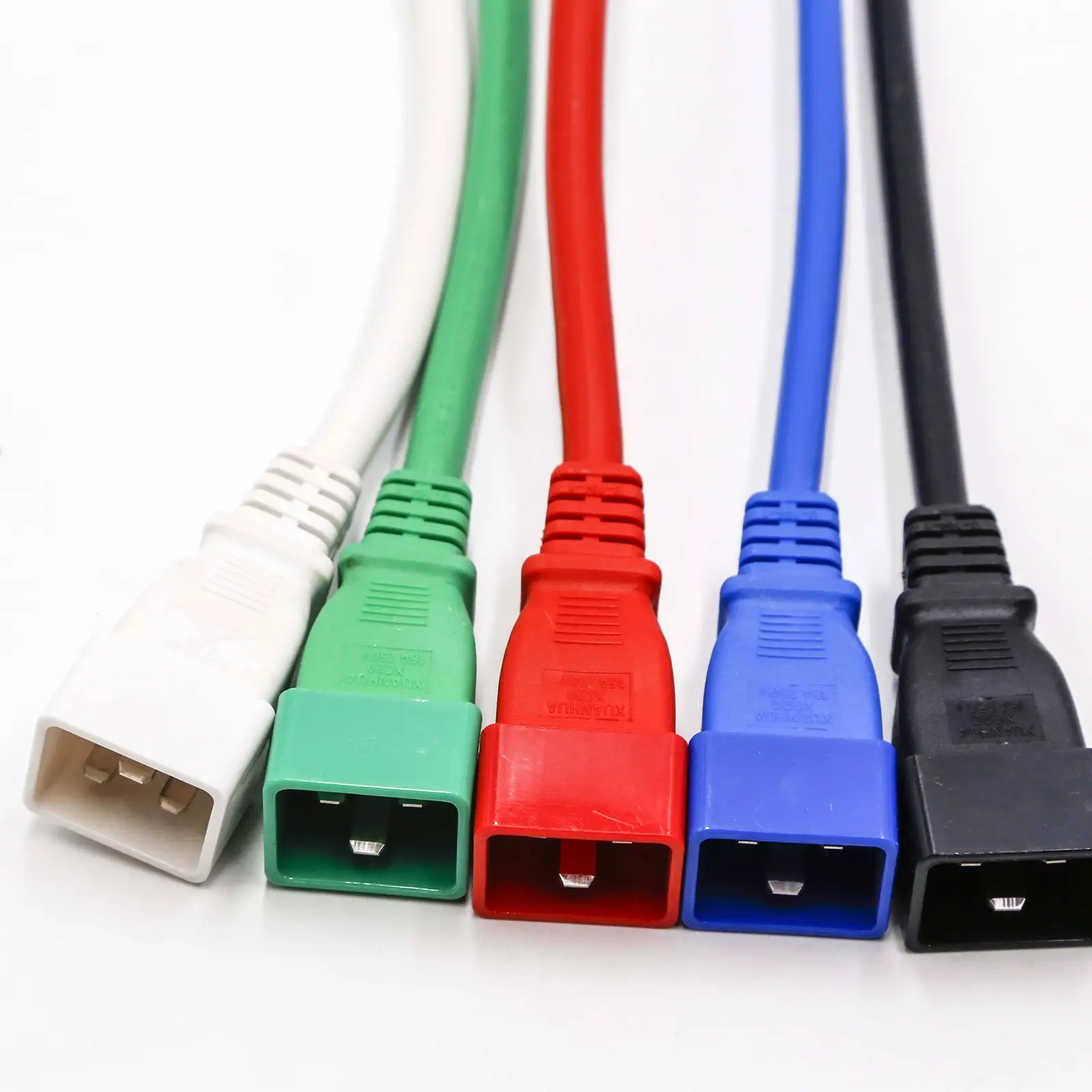

  • Color: White and black are normal, Custom color
  • Material: PVC Outer Mold and Nickel Coated Brass for blades
  • Wire Jacket Material: PVC, Rubber, TPE, Textile
  • Model Number: ST6W

Note: Straight Plug focus; Right Angle, Left Angle and Locking Type variants available.

Certifications and Compliance

  • UL/cUL (Underwriters Laboratories/Canada): File E152210 for safety in North American markets.
  • VDE (Verband der Elektrotechnik): Approved for European electrical standards, ensuring low-emission performance.
  • PSE (Product Safety Electrical Appliance & Material, Japan): JIS C 8303 compliant for Japanese outlets and devices.
  • CCC (China Compulsory Certification): GB 2099.1 certified for mainland China imports.
  • SAA (Standards Association of Australia): AS/NZS 3112 and IEC 60320 compliant for Australian/New Zealand use.
  • Additional: KC (South Korea), ENEC (European safety), CE Mark (EU conformity); all meet RoHS, REACH, and PAHs for environmental safety.
  • Quality Management: ISO 9001:2015 and ISO 14001:2015 certified manufacturing.
Packing

Export Cartons
51 x 31 x 24CM 100PCS/CTN
NW/GW.: 19/20KGS
750 Boxes for 1-20 Ft container

Pallets
Delivery Lead Date

15-20 days
MOQ

50PCS
Samples

Available free with freight collect
