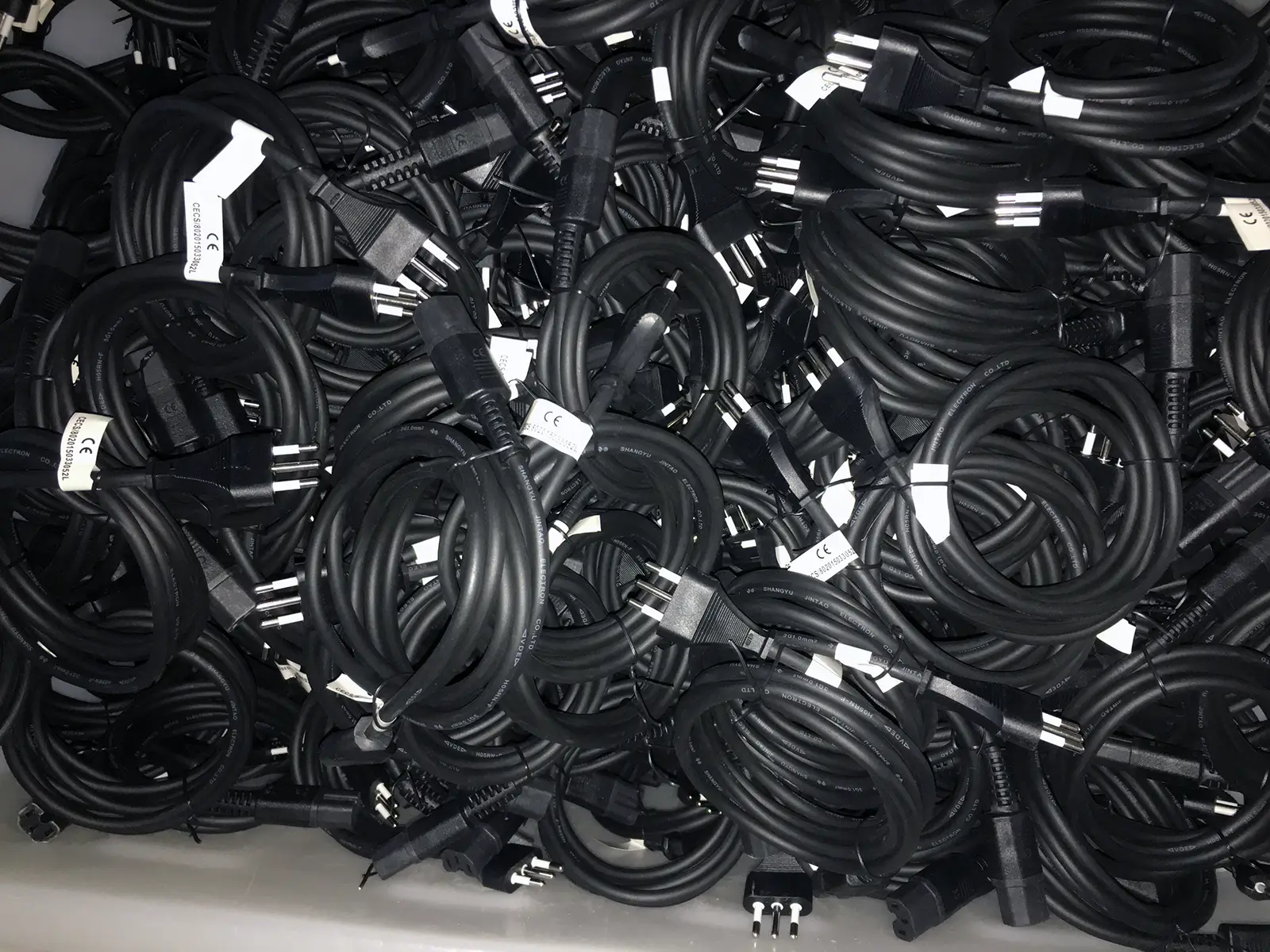

Italian CEI 23-50 Plug to IEC 60320 C15 Receptacle
This is a custom-manufactured, high-temperature AC power cord tailored for Italian and compatible markets (e.g., Chile). It features a 3-pin grounded CEI 23-50 (Type L) plug for secure wall outlet connection and an IEC 60320 C15 high-temp connector for equipment inlets, ideal for demanding environments like industrial servers, medical devices, and hot-swappable appliances. The IMQ certification ensures compliance with Italian electrical safety standards, emphasizing fire prevention and durability. Below is a detailed overview of specifications, features, and compliance.
Technical Specifications
- Product Name:Italy CEI 23-50 10A, 2-pole + side grounding contacts
- Connector Type: IEC 60320 C15 (receptacle, 120°C temperature rating, straight or optional right-angle)
- Ratings: 10A 250V AC
- Standards: CEI 23-50 (Italy), IEC 60320; EN 60335 compliance
- Configuration: 3-Wire grounding,(Live, Neutral, Earth/Ground)
- Safety Certification: IMQ (Instituto Italiano del Marchio di Qualità) VDE Approved
- Colors: Black White standard; custom available
- Operating Temperature: -10°C to +70°C
- Applicable Cables: H05VV-F /H05RN-F /H05RR-F / H07RN-F 3×1.0~2.5
- Cable Length Options: Standard: 1.8 meters (6 feet); customizable (0.3m to 10m+ options)
Custom Power Cable
- Type L Plug: CEI 23-50 (Type L, formerly CEI 23-16), 3-pin grounded (2P+E): Live, Neutral, and Earth pins. Nickel-coated brass blades (5mm diameter, 21mm length for robust connectivity).
- Flexible Cable: High-temperature flexible cord, typically H05RR-F 3G1.0mm² (rubber-insulated for heat resistance) or H05VV-F 3×1.0mm² (PVC-insulated). Unshielded, with black jacket (custom colors like gray or white available). Temperature rating: Up to 105–120°C.
- Connector Type: IEC 60320 C15 (high-temperature variant), 3-pole female inlet. Supports right-angle, left-angle, or locking options for custom configurations; rated for 120°C continuous operation.
AC Power Cable Applications
This cable is specifically designed for powering electrical equipment that generates significant heat or is used in high-ambient-temperature environments, such as:
- Commercial Espresso Machines & Coffee Makers
- Industrial Catering Equipment (e.g., food warmers, steamers)
- Professional Medical & Laboratory Sterilizers
- Networking Hardware (servers, switches, routers with C14 inlets)
- Power Distribution Units (PDUs) in data centers
- Soldering Irons and other high-temperature tools
Italy High-Temp Power Cord Manufacturer
Our Advantages as a Leading Power Cord Manufacturer
With 15+ years as a dedicated power cord factory, we excel in producing Electric cords with Italian Type L Plug
- Guaranteed Market Access: Our IMQ certification eliminates compliance risks, speeding up your product approval process in Italy
- Precision Manufacturing: Produced in our ISO 9001-certified facilities with stringent quality control, including continuity, hi-pot, and insulation resistance tests.
- Customization & Support: We offer OEM/ODM services for custom lengths, colors, and packaging. Benefit from rapid prototyping, low MOQs, and dedicated engineering support.
- Cost-Effective Sourcing: As a direct manufacturer, we provide competitive pricing without compromising on quality or safety.
