KSC 8305 Type E/F Plug to IEC 60320 C19 Heavy-Duty Cable KC Approved
The Korean Server Power Cord is a robust, high-amperage AC power cord tailored for South Korean applications, featuring a KSC 8305 compliant straight plug (Type E/F, 3-pole with earthing contact) on one end and an IEC 60320 C19 connector on the other. Rated at 16A/250V, it carries KC certification (including KTL testing) to meet stringent Korean safety standards. Designed for server and data center use, it supports flexible cables with thermoplastic PVC or crosslinked elastomeric rubber insulation for heat resistance. Fully molded for enhanced durability, it is RoHS, REACH, and PAHS compliant, with options for custom colors, lengths, and end processing to suit diverse requirements.
Technical Specifications
- Plug Type: KSC 8305 Non-rewirable 2 poles + earthing contact Type E/F plug
- Connector (Output): IEC 60320 C19 Designed for high-current applications. The rectangular, keyed connector mates with an IEC C20 inlet.
- Electrical Ratings: 250V AC / 16A (optimized for Korea’s 220V/60Hz; handles typical computer loads up to 3800W).
- Safety Certification: KC (KTL certified), RoHS, REACH, PAHS
- Operating Temperature: -10°C to +70°C
- Applicable Cables: PVC, Rubber (high-temp options: crosslinked elastomeric), Halogen-Free, or Textile Braid, custom colors (gray, silver, transparent) , PU Coiled available.
- Cable Length Options: Customizable (0.5m–2.0m standard; up to 10m+). Common: 1.0m (3.3ft) for portability or 1.8m (6ft) for desk setups.
- Model Number: JT08 / ST6
Custom Power Cable

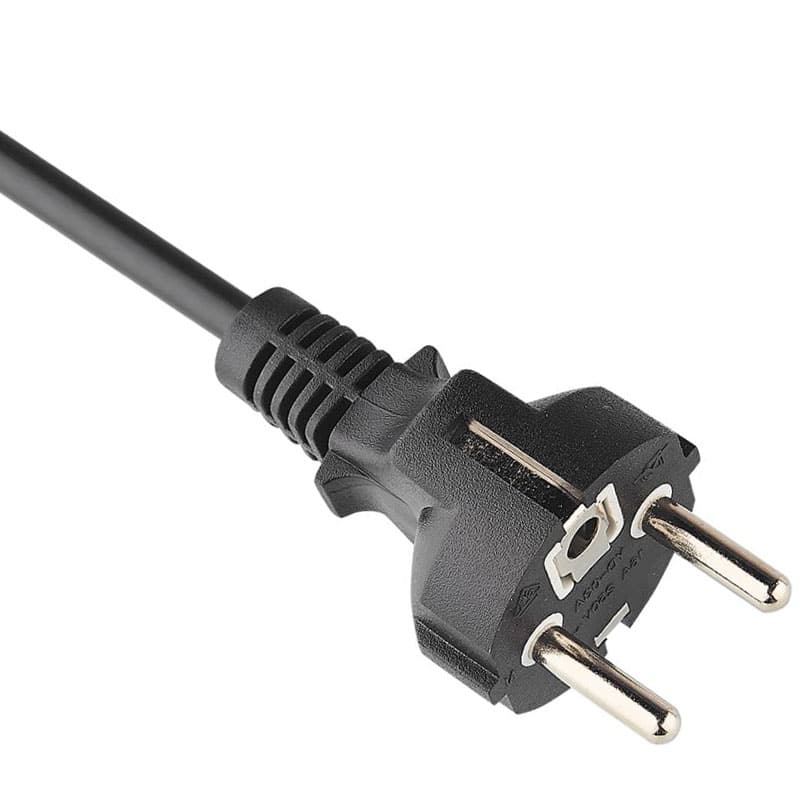

- Type E /F Plug : Available type E plug, Type F plug with Straight or Angle versions
- IEC 320 C19 connectors: Standard straight or optional Right-angle, Left, Locking IEC
- Color: Standard black or white. Gray and custom colors are available upon request.
- Flexible Cable: PVC, Rubber, TPE, Halogen-Free, Textile Braid or Spring Coiled PU cables are available
- Features: Options include inline switches or Leakage Protector Plug, inline GFCI (RCD) modules for added safety.
- Packaging and bulk production—According to request; minimum order quantity varies by specs.

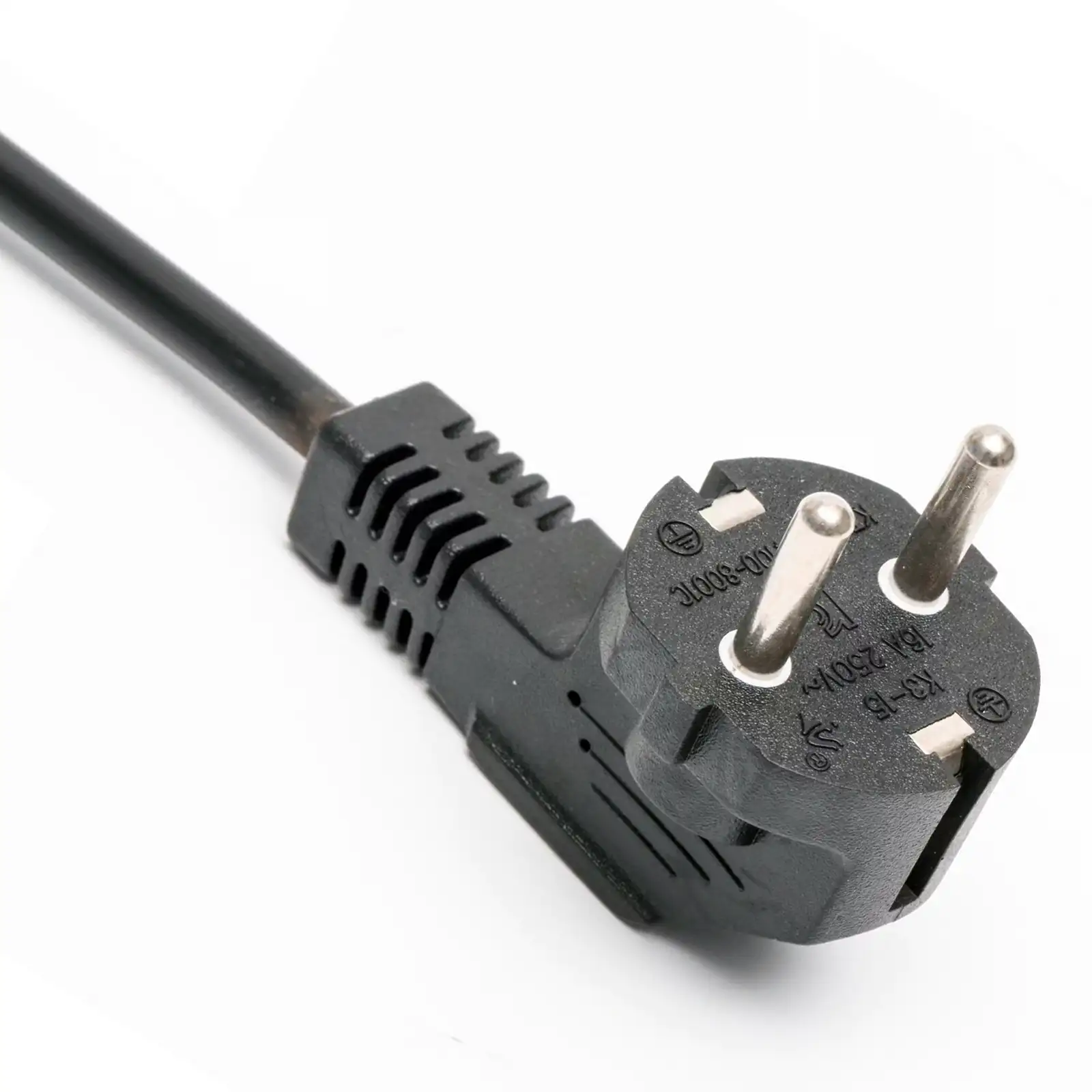

Available Korean 3-Wire Plug Variants
Available IEC 60320 C19 Sockets Variants
We produce and supply standard IEC 60320 C19 receptacle and also angle C19, Locking IEC C19 available
Power Cable Applications
This cord is essential for powering critical high-load infrastructure:
- Data Centers and Server Rooms
- Cloud Computing Infrastructure
- Enterprise Network Racks and Cabinets
- High-Power Workstation Enclosures
- Industrial Control and Power Systems
- Telecommunications Hubs
Korean IEC C19 Power Cord Manufacturer
Our Advantages as a Leading Power Cord Manufacturer
With 15+ years as a dedicated power cord factory, we excel in producing Korean appliance Power Cords with KTL KC approval.
- Guaranteed Market Access: Our KC certification eliminates compliance risks, speeding up your product approval process in Korea
- Precision Manufacturing: Produced in our ISO 9001-certified facilities with stringent quality control, including continuity, hi-pot, and insulation resistance tests.
- Customization & Support: We offer OEM/ODM services for custom lengths, colors, and packaging. Benefit from rapid prototyping, low MOQs, and dedicated engineering support.
- Cost-Effective Sourcing: As a direct manufacturer, we provide competitive pricing without compromising on quality or safety.
2-year industrial warranty included; free samples for qualified OEMs. This KTL KC-certified custom power cord provides safe, efficient 16 Amp connectivity for Korea’s modern low-power ecosystem. For samples, drawings, or modifications, specify your needs!
Buy Direct from Factory Cablesgo manufacturers and supplies electrical AC power supply cords for use in Korea and all Countries in the world. Our extensive and complete Korea power cord line includes power receptacle outlets, Plug, weatherproof receptacle outlets, sockets, multiple outlet power strips, power supply cords, power cable wire and plug adapters . Contact us for Korea AC power cords as China leading power cord manufacturer and supplier.all of our Korea power supply cords are are made of high quality approved by KTL, KC with Rohs and Reach compliant.
