Brazil NBR 6147 AC Power Cords

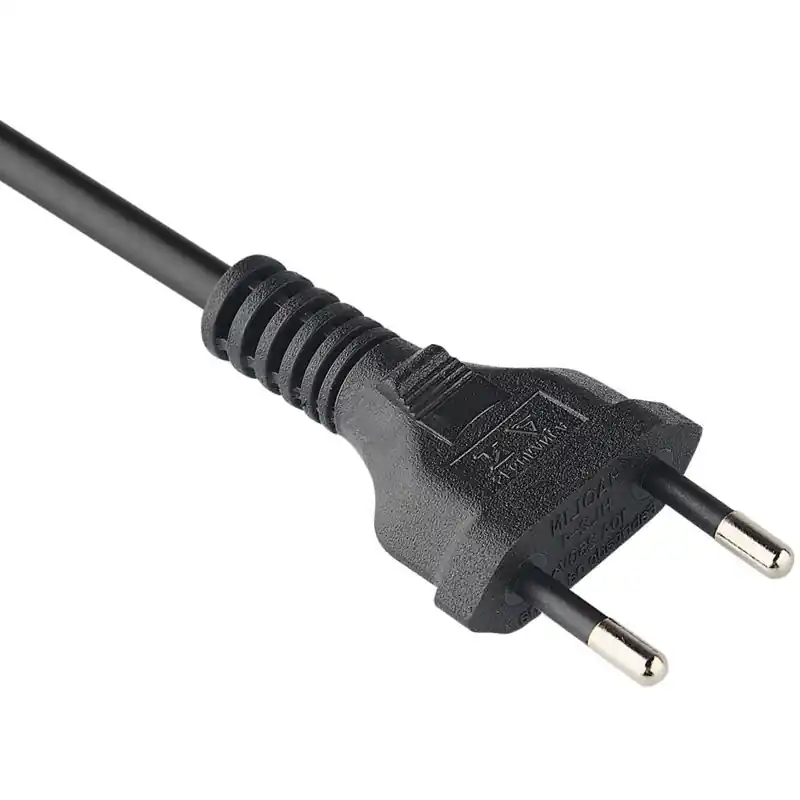

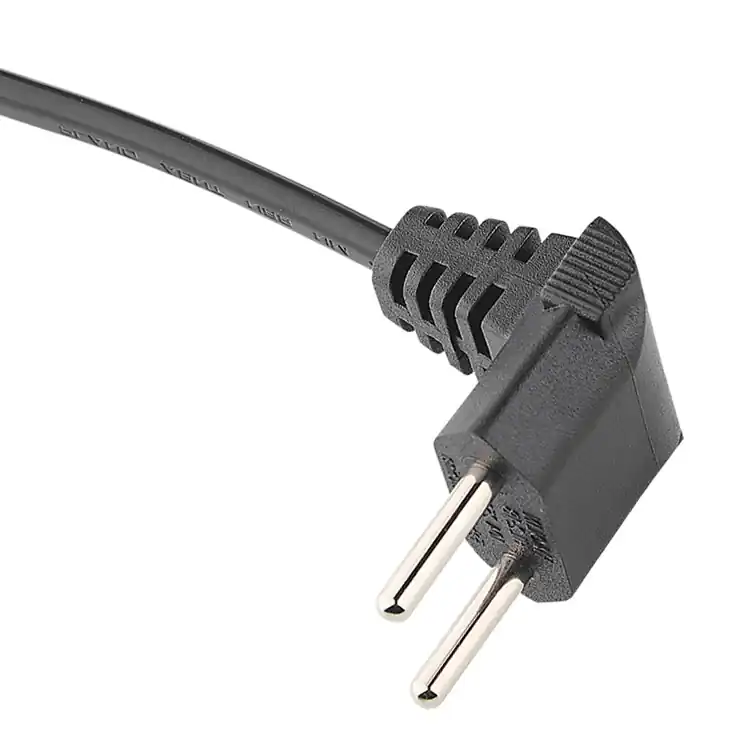

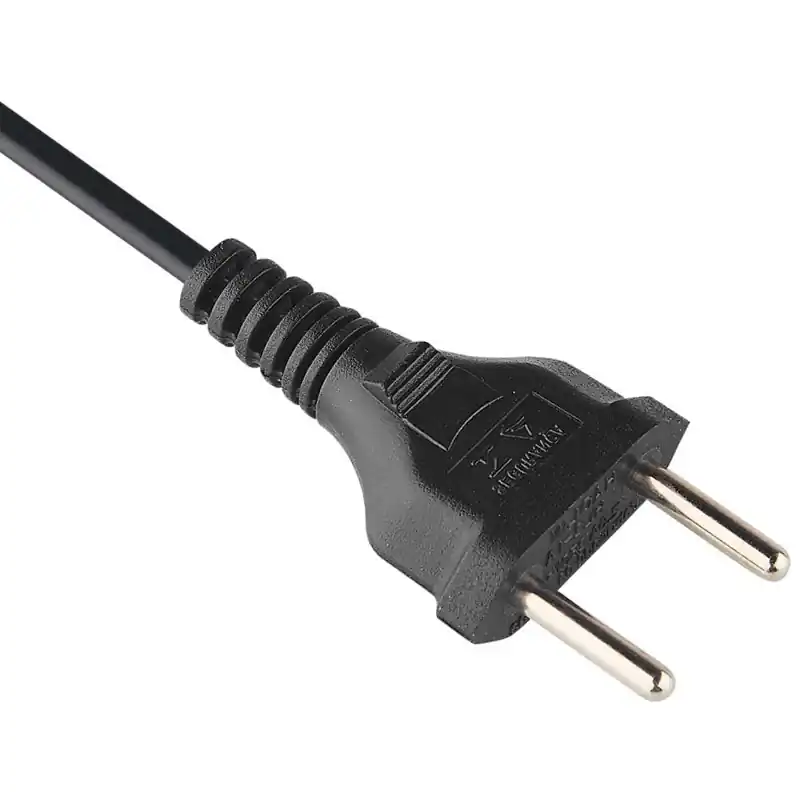

Cablesgo delivers high-quality, legacy-compatible NBR 6147 Brazil Power Cord featuring the non-polarized plug—ideal for non-grounding applications in older equipment or low-power devices. Certified by InMetro for safety and compliance, these 2-pole, 2-wire cords support 250V AC ratings at 2.5A or 10A, ensuring reliable performance in Brazil’s 127V/220V systems.
Technical Specifications
- Plug Type: NBR 6147 (2-Pin Non-Polarized)
- Ratings: 2.5A or 10A @ 250V AC
- Configuration: 2-Pole, 2-Wire (Non-Grounding, 2P)
- Connector Options: IEC 60320 C7 (Figure-8), Unterminated; Custom available
- Approvals: InMetro, RoHS, REACH
- Colors: Black White standard; custom available
- Applications: Low-power, non-earthed devices
- Operating Temperature: -10°C to +70°C
- Cable Length Options: 1m, 1.8m (6ft), 2m (custom available)
| Electrical Rating Amps |
Cable Type | Conductor Normal Area |
| 2.5 | Cabo Flexivel Circular 300V H03VV-F 60227 IEC 52 | 2×0.5mm2 |
| Cabo Flexivel Circular 300V H03H2VV-F 60227 IEC 52 | ||
| 10 | Cabo Flexivel Circular 300V H03VV-F 60227 IEC 52 | 2×0.75mm2 |
| Cabo Flexivel Circular 300V H03H2VV-F 60227 IEC 52 | ||
| Cabo Flexivel Circular 500V H05VV-F 60227 IEC 53 | 2×0.75mm2 or 2×1.0mm2 | |
| Cabo Flexivel Circular 500V H05H2VV-F 60227 IEC 53 | ||
| Cabo Flexivel Circular 500V H05RR-F 60245 IEC 53 | ||
| Cabo Flexivel Circular 500V H05RN-F 60245 IEC 57 | ||
| Cabo Flexivel Circular 500V H05V2V2-F 60245 IEC 57 |
Though phasing toward NBR 14136 (Type N), NBR 6147 remains widely used for compatibility. As a leading manufacturer, we offer molded construction for durability, RoHS/REACH compliance, and customization to bridge legacy setups with modern IEC connectors. Please contact us for bulk, custom orders, or datasheets.
