SABS Certified SANS 164-1 Type M 16A
CablesGo, China’s premier factory-direct supplier, manufactures SABS Certified South Africa Type M 16A Power Cords for OEM factories and bulk distributors. Compliant with SANS 164-1, these 2/3-Wire Grounded AC Supply Cables ensure safe 16A 250V connectivity for appliances like TVs, refrigerators, and power tools. SABS Approved meets South African safety norms, with scalable production for reliable quality and efficient worldwide shipping.
Technical Specifications
- Plug Type: South Africa Standard (Large Three-Round-Pin), Type M
- Ratings: 16A 250V AC
- Configuration: 2-wire or 3-wire
- Connector Options: Available with a wide range of IEC 60320 connectors including IEC 60320 C-5, C-13, C13 Right Angle, C13 Left Angle, C-13 Locking, C-15, C15 Right Angle , C-15 Locking, C-19, C19 Right Angle, C19 Locking
- Approvals: SABS
- Colors: Black White standard; custom available
- Applications: Grounded/un-grounded devices
- Operating Temperature: -10°C to +70°C
- Cable Length Options: Custom length
- Model Number : N3-16

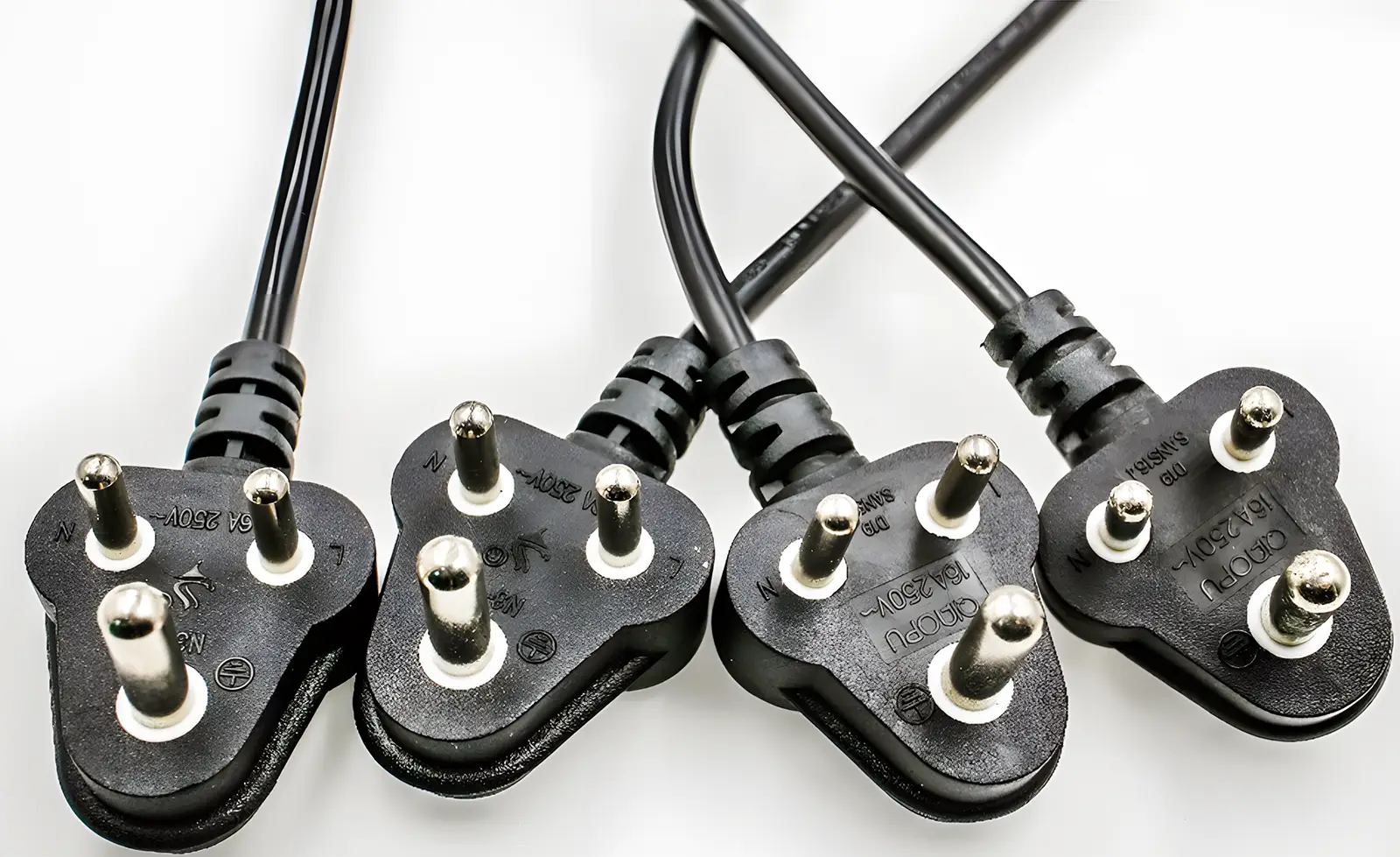

SABS Certified South African 16A Power Cord SANS 164-1 Compliant (Type M) Non-rewirable, one-piece molded plugs prevent internal wire loosening, moisture ingress, and accidental pull-outs. Premium AC power supply cable engineered specifically for the South African market. Fully compliant with SANS 164-1 standards and featuring the distinctive Type M plug configuration, this power cord delivers safe, reliable 16A 250V connectivity for a wide range of electrical appliances and equipment.
Manufactured under strict quality management systems, each cord bears the SABS mark—your trusted symbol of safety and quality assurance for the South African market. Available in both 2-wire (non-grounded) and 3-wire (grounded) configurations, these power cords offer flexible solutions for grounded and ungrounded devices alike

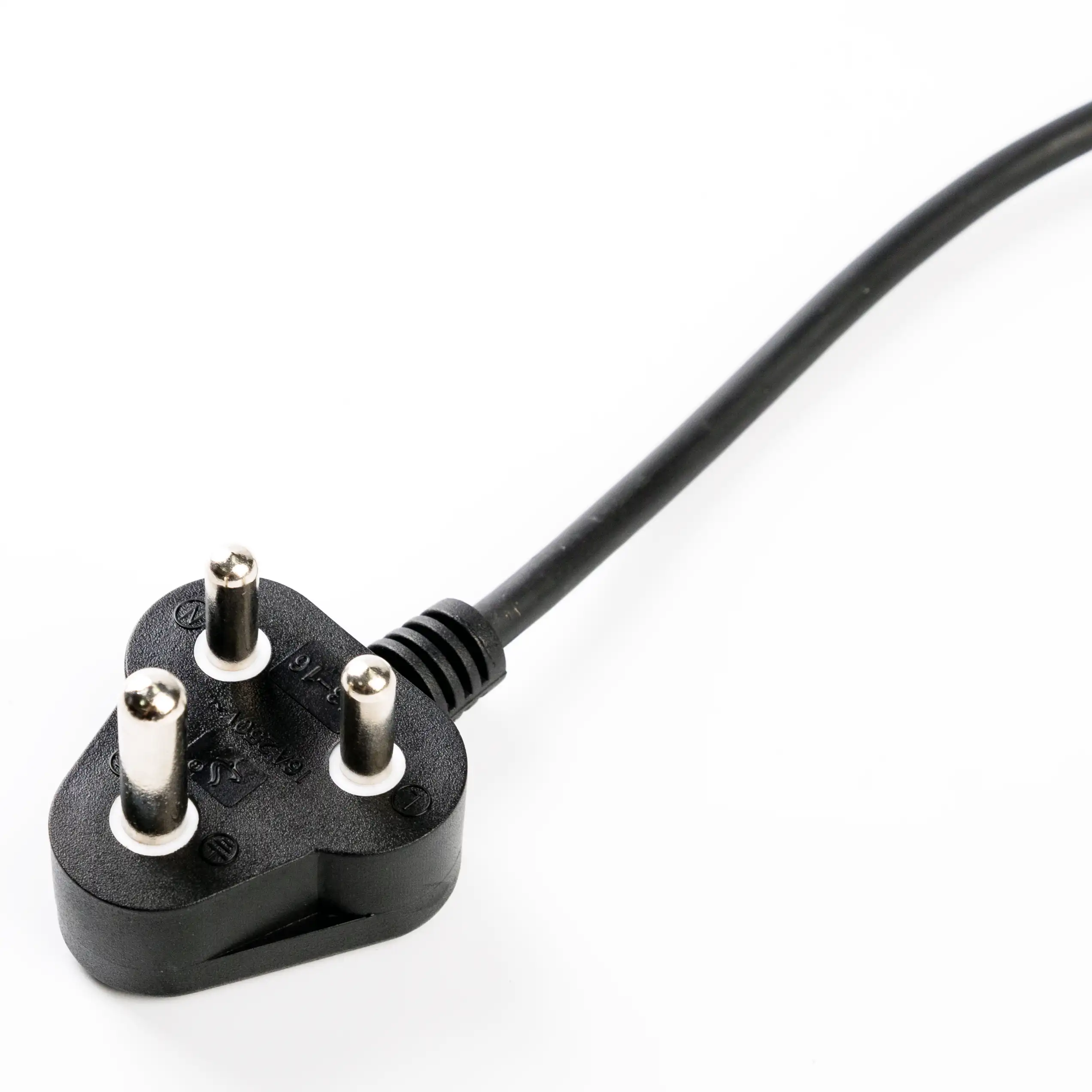

Type M Plug Design

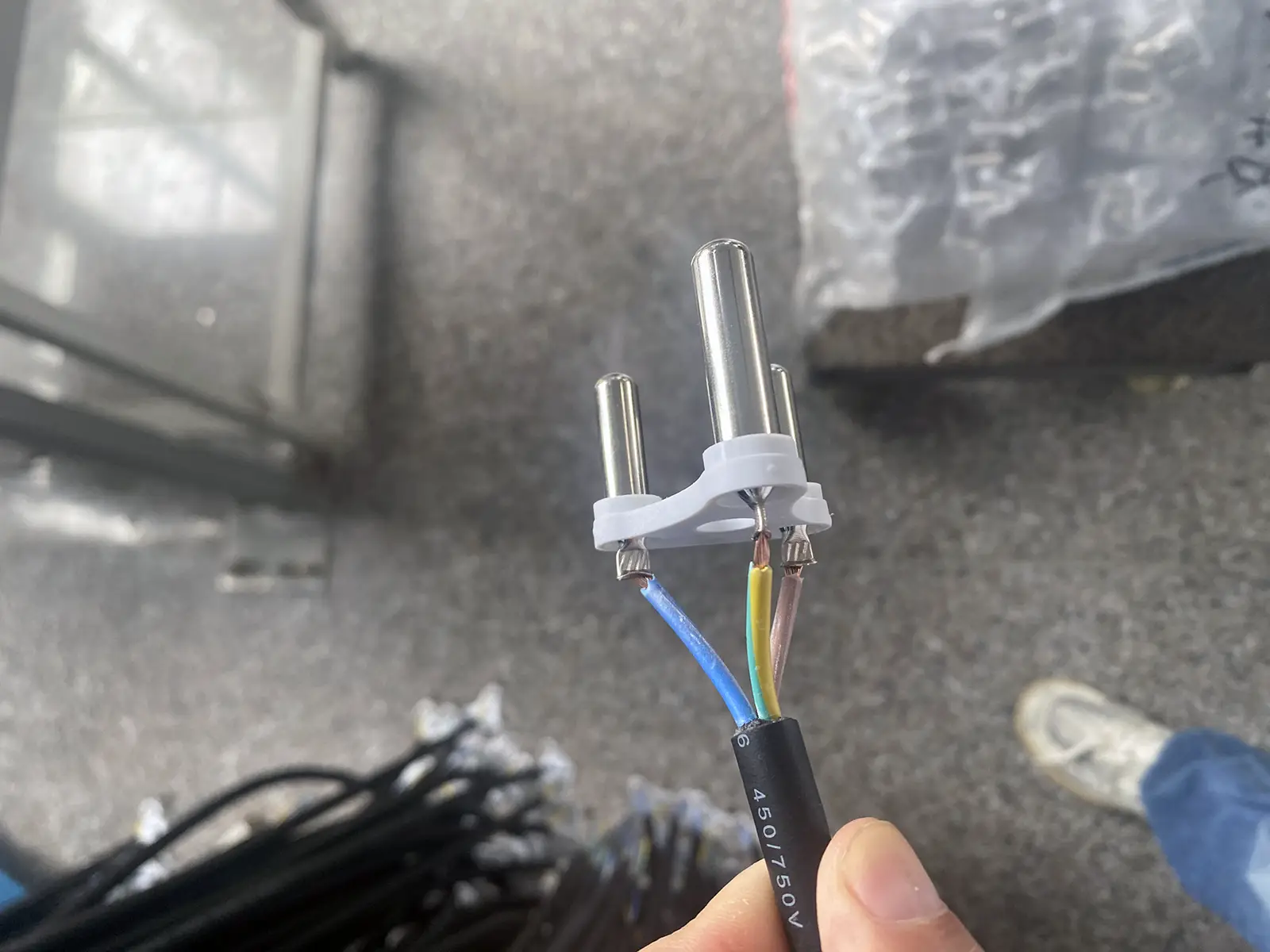

The Type M plug features three round pins arranged in a triangular configuration. The central grounding pin is larger and longer than the line and neutral pins, ensuring proper grounding contact upon insertion.
- Grounding pin (Earth): 28.6 mm long, 8.7 mm diameter
- Line & Neutral pins: 18.6 mm long, 7.1 mm diameter
- Pin spacing (center-to-center): 25.4 mm
- Ground-to-power pin center distance: 28.6 mm
Custom Power Cord with South Africa Plugs
Tailor-Made Power Cords for Your Unique Applications. We bring your custom power connector vision to life by modifying every element—cable materials including: Standard PVC: Cost-effective, abrasion-resistant. Rubber (H05RN-F / H07RN-F): Extreme flexibility and weather/oil resistance for outdoor or industrial use.Halogen-Free (LSZH): Low smoke, zero halogen—essential for data centers and enclosed public spaces.Textile Braided: Premium aesthetic for high-end audio or retro appliances.. We ensure a perfect fit and function with custom stripping, terminals, and strain reliefs. Partner with us for a cord that seamlessly integrates with your appliance.
Normal Stripped, Splitter and ROJ
We manufacturers and supplies South Africa AC power cords, the other end can be stipped ,ROJ with custom length
Common Termination
South Africa AC power cords,one end molded with standard plugs, the opposite could be terminated with types of terminals such as grounding rings terminals ,fork with heat shrink or nylon insulated.
South African Plug Molded with IEC 60320 Connector Options
These power cords can be terminated with a variety of IEC 60320 connectors to suit different equipment requirements:
SANS 164-1 Type M 16A Available with In-line Switches and Lamp Holder
These South African power cords are assembled with online switches for salt lamp power supply cords, custom switch types and online positions.
Dimmer On-line switches and E12,E14,E27 lamp sockets .
Applications
Ideal for powering a wide spectrum of equipment in homes, offices, and industries:
- For 3-Wire Grounded Cords: Air conditioners, refrigerators, washing machines, electric water heaters, industrial power tools.
- For 2-Wire Non-Grounded Cords: Televisions, audio systems, desktop computers (check specification), and other double-insulated appliances.
Compliance & Quality Assurance
Every cord is manufactured under a strict quality management system and undergoes rigorous testing to ensure it not only meets but exceeds the SANS 164-1 safety standard. The SABS mark is your trusted symbol of quality and safety for the South African market.
Why Choose SABS Certified Power Cords
Our Advantages as a Leading Power Cord Manufacturer from China.

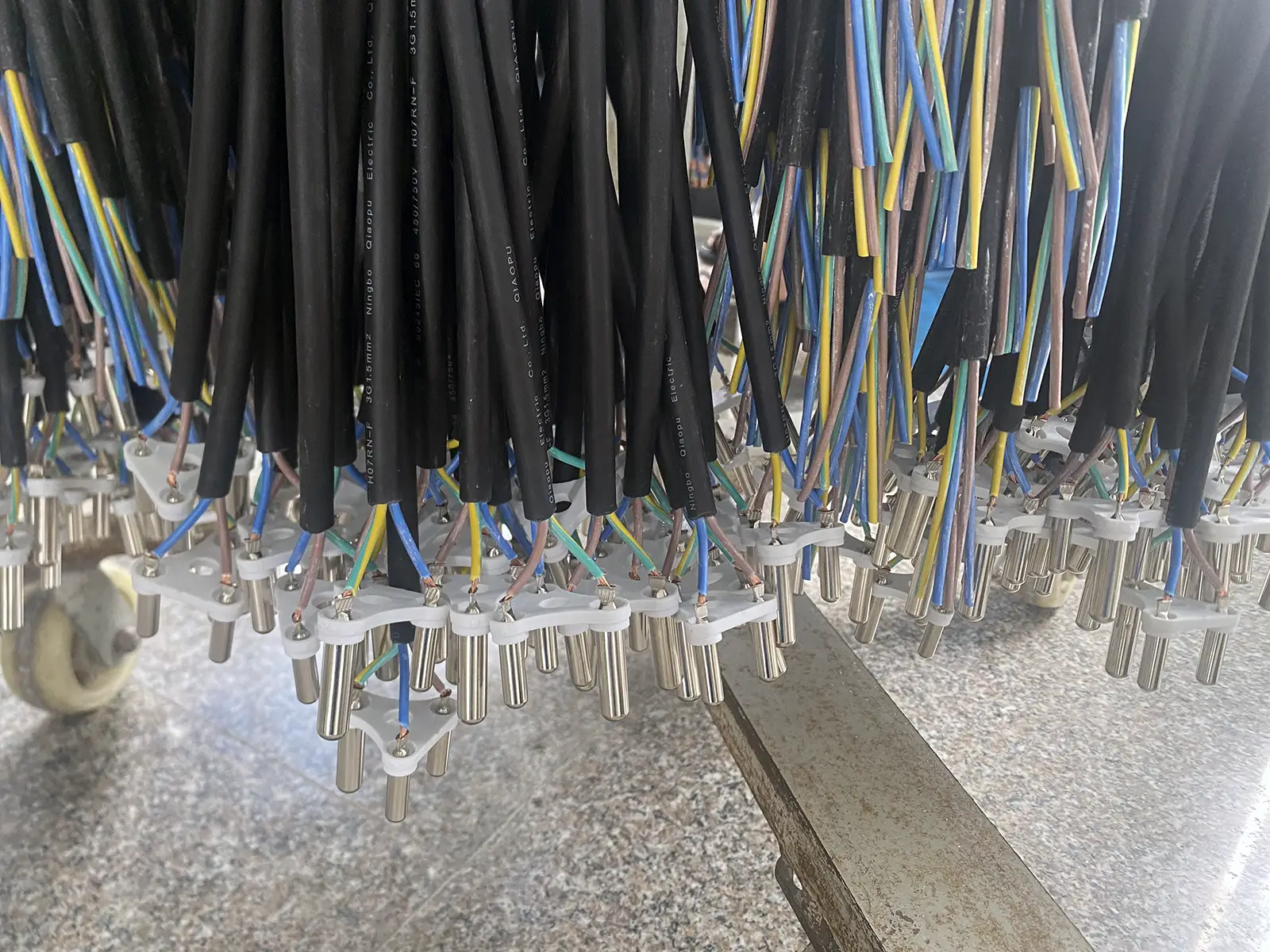

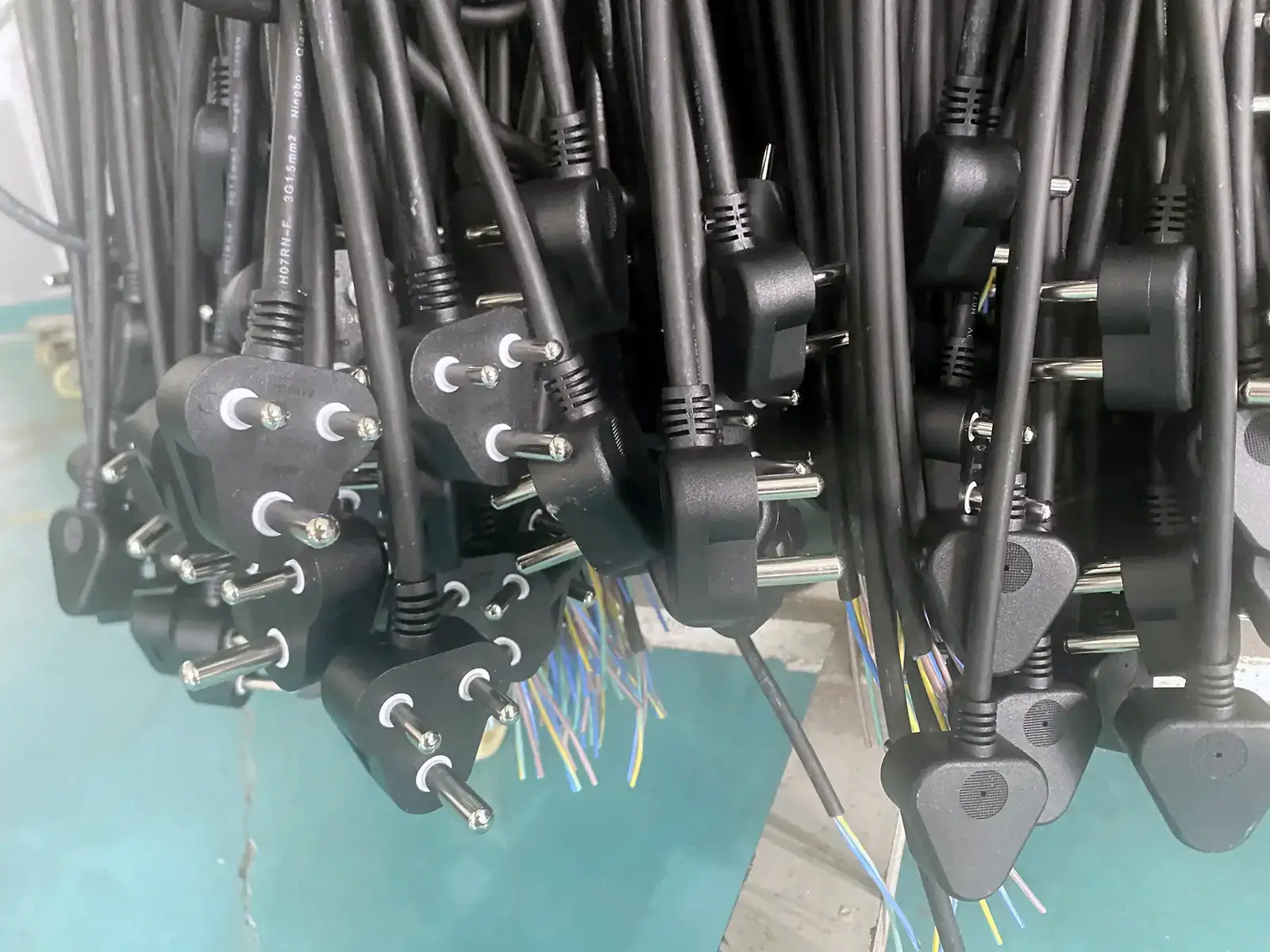

With 15+ years as a dedicated power cord factory, we excel in producing South African AC Power Cords with Type M Plugs
- Regulatory Compliance – Mandatory for legal sale and use of electrical equipment in South Africa
- Safety Assurance – The SABS mark is your trusted symbol of quality and safety
- Reliable Performance – Rated for 16A 250V high-load applications
- Application Flexibility – Available in both grounded and ungrounded configurations
- Global Export Ready – RoHS/REACH compliant for international markets
- Customizable – Tailored to your specific length, color, and connector requirements
For bulk orders, OEM/ODM requirements, or technical specifications, please contact our sales team to specify your required wiring configuration, desired length, connector type, and packaging preferences.
2-year industrial warranty included; free samples for qualified OEMs. Contact our team for quotes or custom Molded Type G AC Cable builds!
Buy Direct from Factory Cablesgo manufacturers and supplies electrical AC power supply cords for use in South Africa and all Countries in the world. Our extensive and complete South Africa power cord line includes power receptacle outlets, Plug, weatherproof receptacle outlets, sockets, multiple outlet power strips, power supply cords, power cable wire, and plug adapters. Contact us for South African AC power cords as leading power cord manufacturer and supplier.all of South Africa power supply cords are approved by SABS with Rohs and Reach compliant.
Note: Non-Rewireable focus; Rewireable options available.
