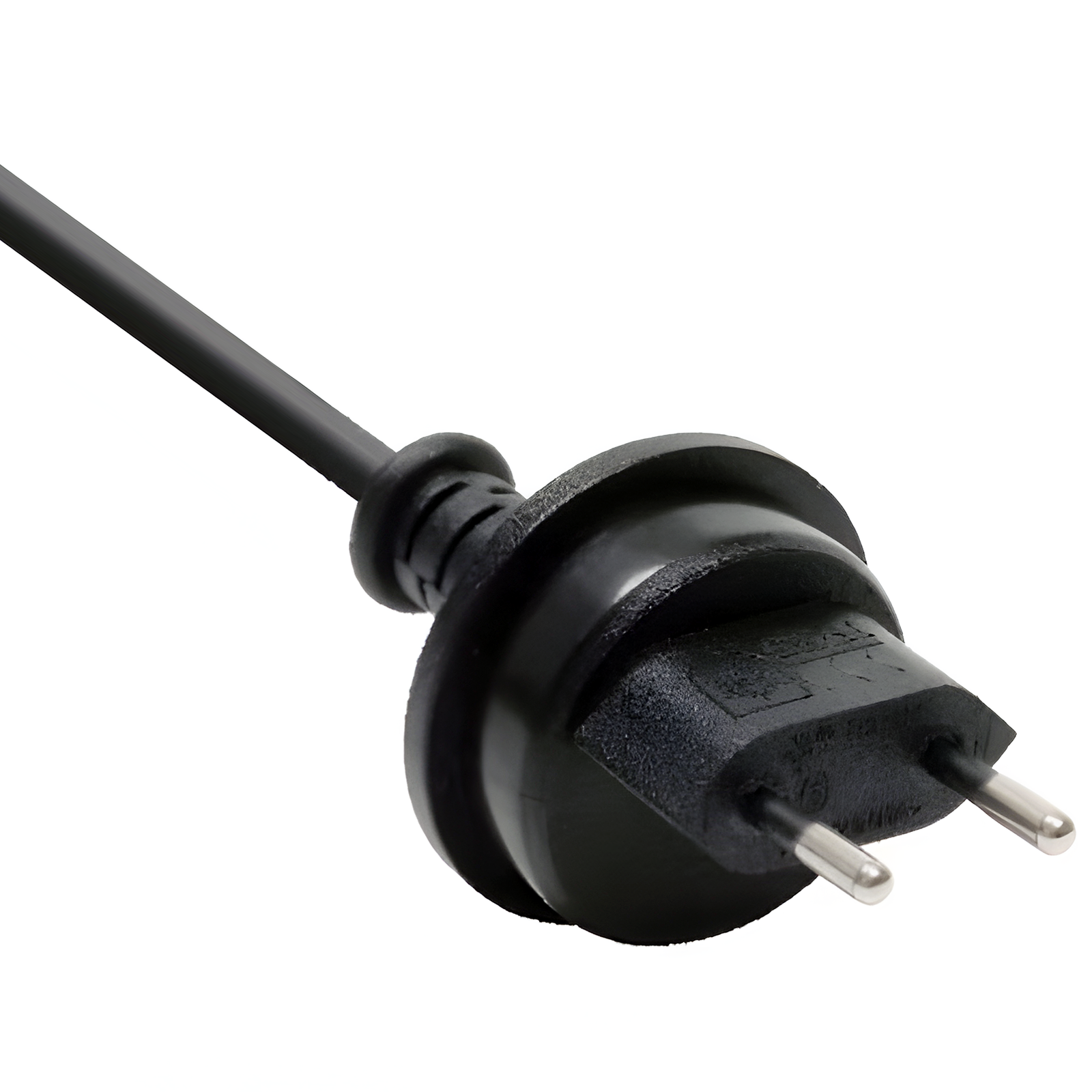

Switzerland IP55 Outdoor Plug
These Switzerland Power Cords With Outdoor Plug are engineered for safe, reliable electrical connections in Switzerland and compatible regions, adhering to the SN 441011 standard (Type C plug). The IP55-rated plug provides dust-tight and water-jet protection, making them suitable for outdoor, industrial, or harsh environments. Rated at 10A 250V, they support up to 2,500 watts and feature a 2-wire grounded (2P) configuration. All models are SEV certified by the Swiss Electrical technical Association, ensuring compliance with rigorous safety and environmental standards like RoHS, REACH, and PAHS.
Technical Specifications
- Plug Type: Switzerland Type C, SN 441011 Plug
- Ratings: 10A 250V AC
- Configuration: 2-Wire Non-grounding,(Live, Neutral)
- End Options: ROJ, Terminals,Unterminated
- Safety Certification: SEV, SN 441011
- Colors: Black White standard; custom available
- Operating Temperature: -10°C to +70°C
- Applicable Cables: H05RN-F, H05RR-F ,H07RN-F
- Cable Length Options: Varies (Commonly 1.5m, 2m, 3m, etc.)
- Application: AC Power Supply Cords for various electronic equipment in Switzerland
- Mode Number: R2-10F
IP 55 Switzerland Power Cord New Standard
Swiss standard SN 441011 (previous SN SEV 1011, withdrawal 28.02.2022) defines the requirements for plugs and socket-outlets for household and similar purposes, multi-way and intermediate adapters, cord extension sets, cord extension sets with multiple portable socket-outlets, travel adapters and fixed adapters. The Swiss system is extended by plugs and socket-outlets with the degree of protection IP55. This system is dust protected (IP5X) and water jet protected (IPX5). For appliances mainly used at locations requiring an increased IP protection (> IP21), an IP55 plug shall be fitted. For example for appliances for construction sites, for agricultural and gardening establishments and for all appliances for outdoor use. This also applies to the fixed socket-outlet IP55 on the exterior house wall or in the building site power distribution cabinet, This standard clearly specifies the relevant products for the Swiss market, thereby reliably covering electrical safety and user requirements.
The new Swiss standard series SN 441011, which replaces the previous standard SN SEV 1011, was expanded to include a standardized plug system with IP55 protection, Swiss plugs IP55 are used when a higher level of protection than IP20 is required. When Swiss plugs IP55 are plugged into suitable IP55 sockets, they offer protection against dust and water jets from any angle, Areas of application include agricultural businesses, horticulture, construction, power distribution, and outdoor equipment.
Custom Switzerland Power Cords
Tailor-Made Power Cords for Your Unique Applications. We bring your custom power connector vision to life by modifying every element—from plug types like right-angle or waterproof designs , Leakage Protector , Online GFCI to cable materials including PVC, Rubber, and LSZH. We ensure a perfect fit and function with custom stripping, terminals, and strain reliefs. Partner with us for a cord that seamlessly integrates with your appliance. Switzerland Power Cords are black and white as the standard color. gray and custom colors are available. Custom length and coiled Swiss AC power cord, Swiss AC power cables available. Terminated, custom stripping.
Regular Stripped, Splitter and ROJ
We manufacturers and supplies Switzerland Power Cord With Outdoor Plug molded flexible PVC or Rubber cable, the opposite end can be stripped, ROJ with custom length.
Custom Terminals
Provide us with your terminal model and specifications, and we will handle the rest. We source exact components from leading manufacturers like TE Connectivity and Molex or identify high-quality equivalents. Every connection we deliver is built to last and rigorously tested to pass all required pull tests.
Application Scope
This ungrounded outdoor Swiss power cable is ideal for double-insulated (Class II) outdoor equipment, including:
- Outdoor garden tools and lawnmowers
- Commercial outdoor lighting and seasonal holiday lights
- Portable outdoor power tools and construction equipment
- Exterior high-pressure washers and pumps
Why Choose CablesGo SEV Certified Swiss Power Cords
Our Advantages as a Leading Power Cord Manufacturer
With 15+ years as a dedicated power cord factory, we excel in producing Electric cords with SEV Certified
- Guaranteed Market Access: Our SEV VDE CE certifications eliminates compliance risks, speeding up your product approval process in Switzerland and Europe
- Precision Manufacturing: Produced in our ISO 9001-certified facilities with stringent quality control, including continuity, hi-pot, and insulation resistance tests.
- Customization & Support: We offer OEM/ODM services for custom lengths, colors, and packaging. Benefit from rapid prototyping, low MOQs, and dedicated engineering support.
- Cost-Effective Sourcing: As a direct manufacturer, we provide competitive pricing without compromising on quality or safety.
Buy Direct from Factory & Save – Cablesgo manufacturers and supplies electrical AC power supply cords for use in Swizterland and all countries in the world. Our extensive and complete Switzerland power cord line includes power receptacle outlets, Plug, weatherproof receptacle outlets, sockets, multiple outlet power strips, power supply cords, power cable wire and plug adapters . Contact us for Swiss AC power cords as China leading power cord manufacturer and supplier.all of our Switzerland power supply cords are are made of high quality approved by SEV, VDE with Rohs and Reach compliant.
