Switzerland IP55 Plug AC Power Cord
These Swiss power cords are engineered for safe, reliable electrical connections in Switzerland and compatible regions, adhering to the SN 441011 standard (Type J plug). The IP55-rated plug provides dust-tight and water-jet protection, making them suitable for outdoor, industrial, or harsh environments. Rated at 10A 250V, they support up to 2,500 watts and feature a 3-wire grounded (2P+E) configuration for enhanced safety. Customizable lengths and terminations allow for tailored applications, from household appliances to professional setups. All models are SEV certified by the Swiss Electrotechnical Association, ensuring compliance with rigorous safety and environmental standards like RoHS, REACH, and PAHS.
Technical Specifications
- Plug Type: SN 441011 Type J (Male, 3-Pin: 2P+E, IP55 Rated)
- Ratings: 10A 250V AC
- Configuration: 2-Pole 3-Wire Non-grounding,(Live, Neutral,Earth )
- End Options: ROJ, Terminals, IEC 60320 C5, C13, C15 (120°C), C19 Unterminated
- Safety Certification: SEV, SN 441011
- Colors: Black White standard; custom available
- Operating Temperature: -10°C to +70°C
- Applicable Cables: H05RN-F, H05RR-F ,H07RN-F
- Cable Length Options: Varies (Commonly 1.5m, 2m, 3m, etc.)
- Application: AC Power Supply Cords for various electronic equipment in Switzerland

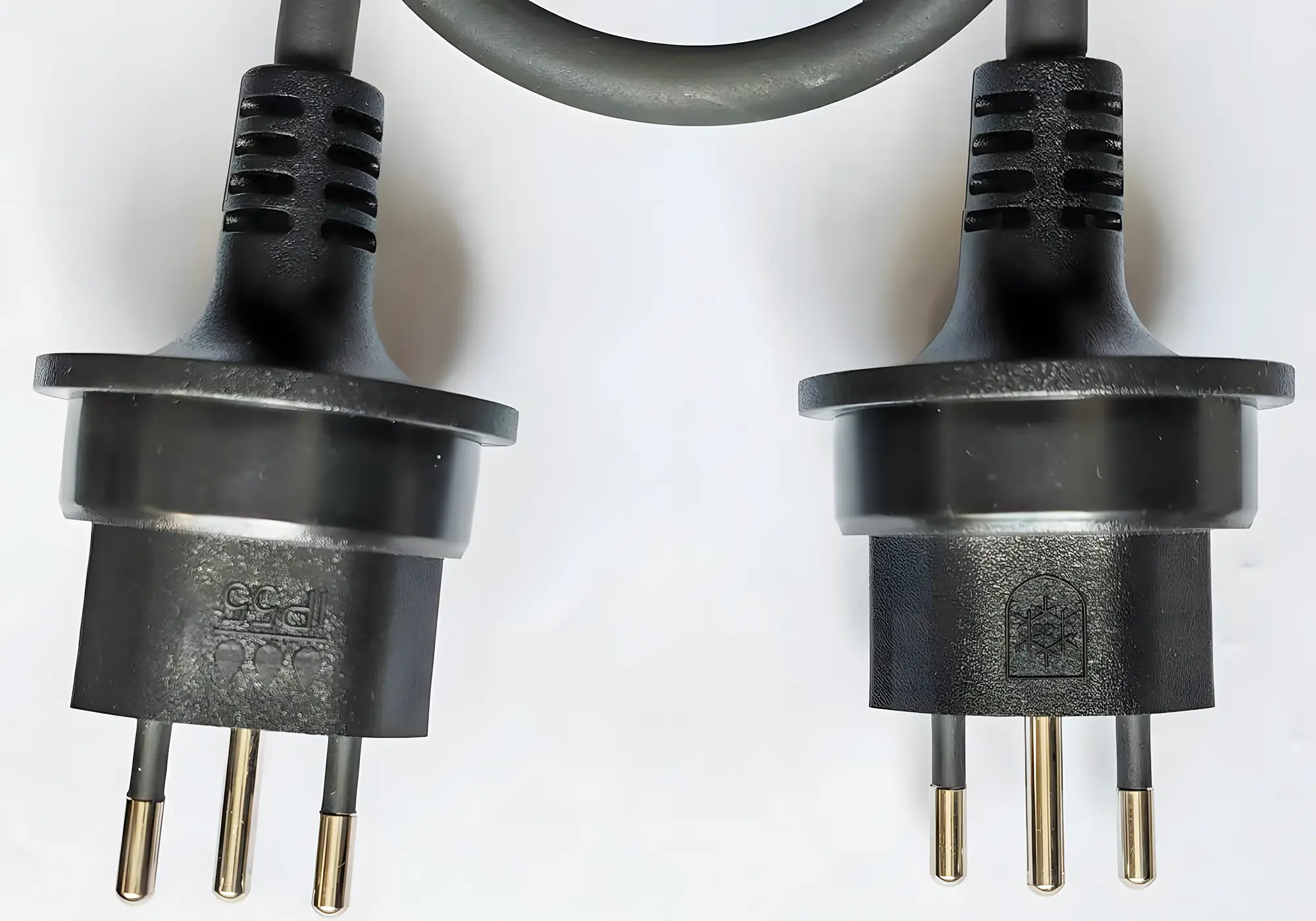

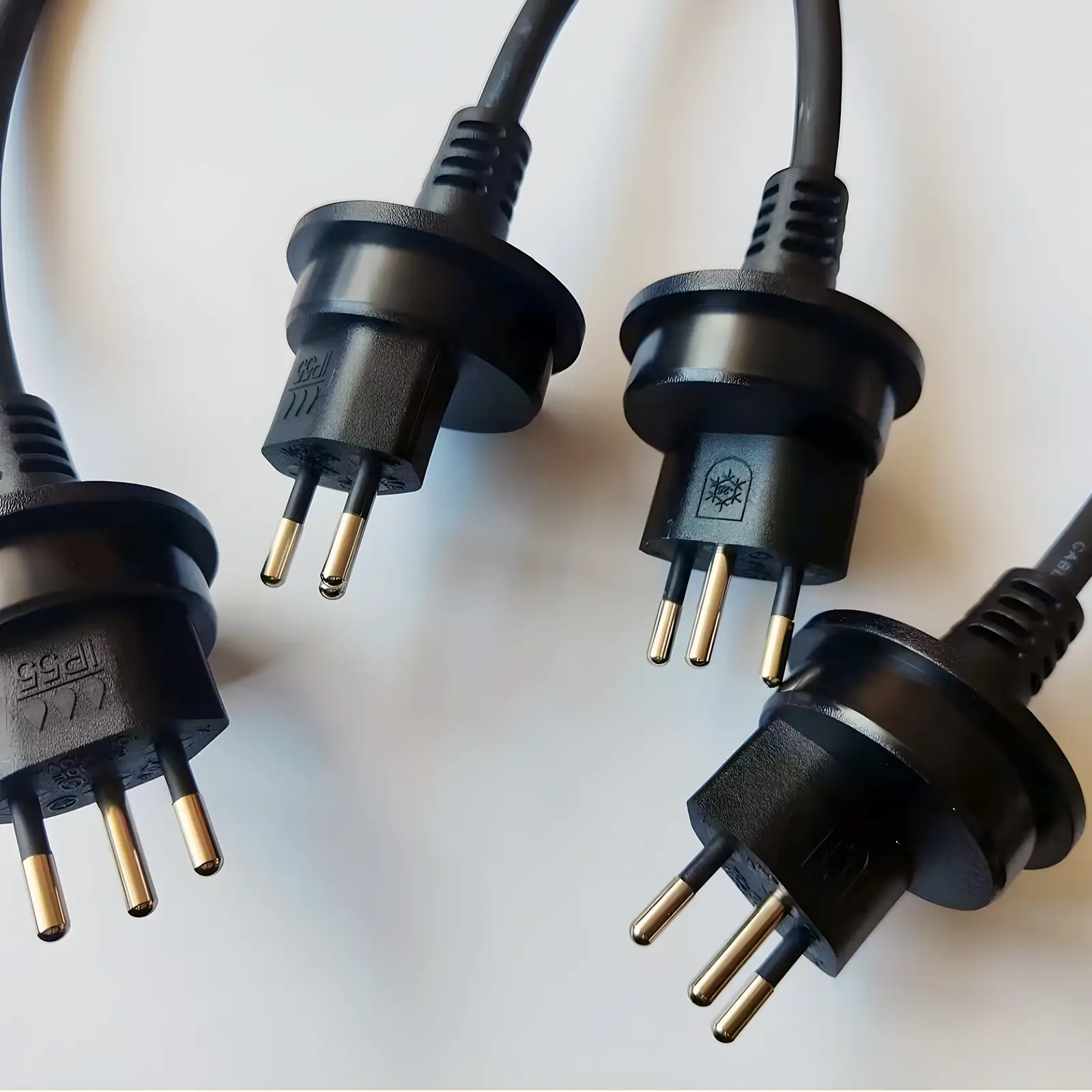

IP 55 Switzerland Power Cord New Standard
Swiss standard SN 441011 (previous SN SEV 1011, withdrawal 28.02.2022) defines the requirements for plugs and socket-outlets for household and similar purposes, multiway and intermediate adaptors, cord extension sets, cord extension sets with multiple portable socket-outlets, travel adaptors and fixed adaptors. The Swiss system is extended by plugs and socket-outlets with the degree of protection IP55. This system is dust protected (IP5X) and water jet protected (IPX5). For appliances mainly used at locations requiring an increased IP protection (> IP21), an IP55 plug shall be fitted. For example for appliances for construction sites, for agricultural and gardening establishments and for all appliances for outdoor use. This also applies to the fixed socket-outlet IP55 on the exterior house wall or in the building site power distribution cabinet, This standard clearly specifies the relevant products for the Swiss market, thereby reliably covering electrical safety and user requirements.
The new Swiss standard series SN 441011, which replaces the previous standard SN SEV 1011, was expanded to include a standardized plug system with IP55 protection, Swiss plugs IP55 are used when a higher level of protection than IP20 is required. When Swiss plugs IP55 are plugged into suitable IP55 sockets, they offer protection against dust and water jets from any angle, Areas of application include agricultural businesses, horticulture, construction, power distribution, and outdoor equipment.
