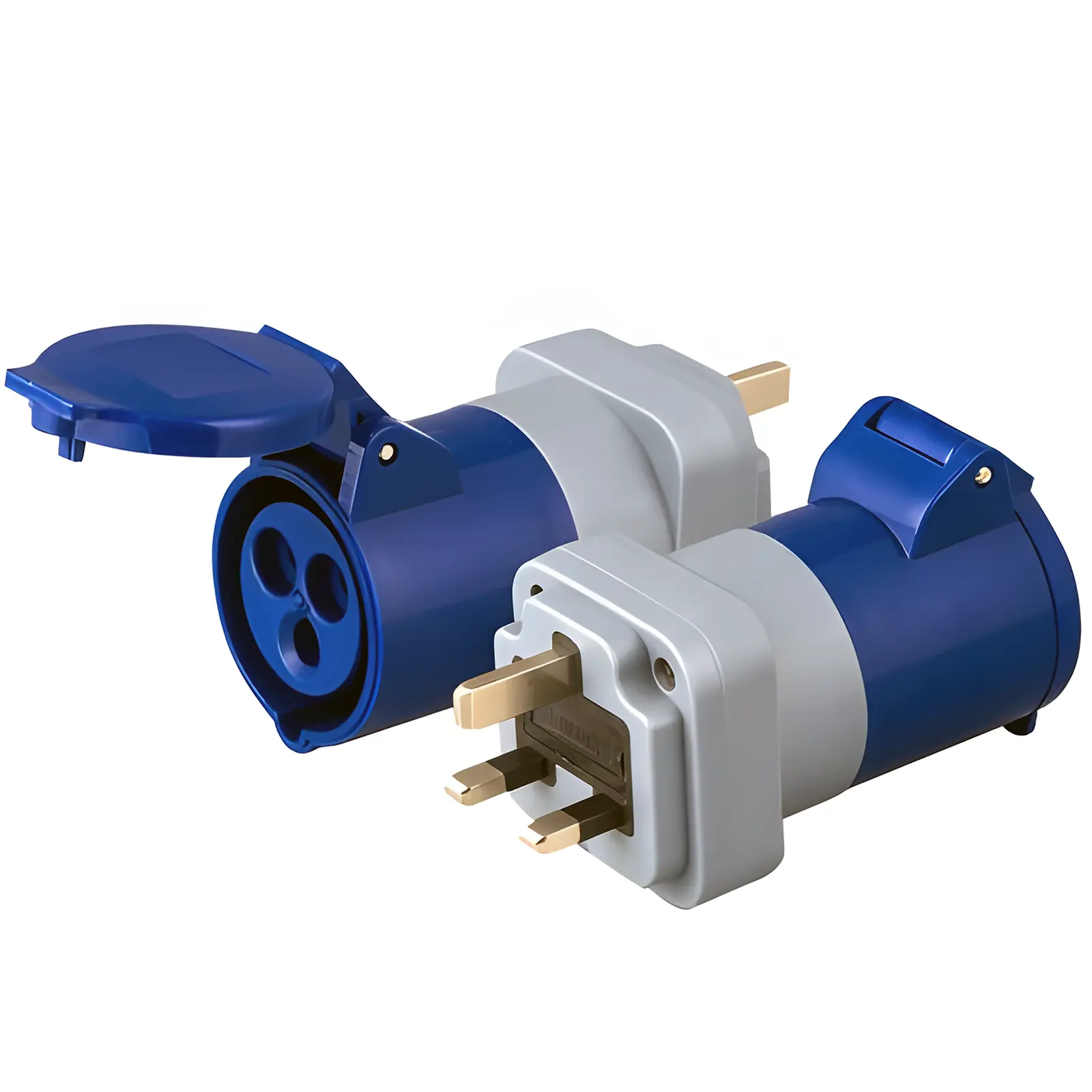

UK plug IEC 60309 Receptacle

British Plug Adapter UK BSI 1363 Plug Type G to IEC 60309 Receptacle for Tent/ Motorhome/ Caravan/ Camping

  • Easy Conversion – Transforms a standard UK 3-pin domestic socket into a 16A caravan-style hook-up connection
  • Dual Compliance – Fitted with a BS1363-1 compliant UK mains plug and a splash-proof 16A connector conforming to IEC60309-2 standards
  • Splash-Proof Design – The IEC 60309 receptacle features a hinged protective cover for enhanced durability and weather resistance
  • Compact & Portable – Short lead design with highly visible orange mains cable for easy storage and transportation
  • Versatile Application – Suitable for caravans, motorhomes, campervans, trailer tents, generators, and outdoor power setups
  • IP44 Rated – Protected against splashing water from all directions, making it ideal for outdoor and camping environments
Category: Tag:
Share:

UK Type G Plug IEC Socket Adapter

This British Plug Adapter provides a simple and convenient way to connect your caravan, motorhome, campervan, trailer tent, or other leisure vehicle to a standard UK domestic mains power supply. Designed for camping, outdoor events, and maintenance purposes, this compact adapter converts a standard 3-pin UK household plug (Type G, BS 1363) into a 16A industrial-style IEC 60309 receptacle (CEE form / Commando socket), allowing you to power your vehicle’s electrical systems from a domestic wall socket at home, on a driveway, or during preparation and servicing.UK plug IEC 60309 Receptacle is commonly found on United Kingdom Campsites and Marinas. This adapter would typically be used to convert standard 13 Amp Socket to a IEC 60309 industrial blue socket allowing you to power your your camping/ caravan from a normal British socket when you camping.

Technical Specifications

  • Product Type : UK Mains Hook-Up Adapter Lead
  • Input Connection : UK 3-Pin Plug – Type G (BS 1363-1)
  • Output Connection : 16A 3-Pin IEC 60309 Receptacle (CEEform / Commando)
  • Pin Configuration : 2P+E (2 Poles + Earth)
  • Rated Voltage : 230V AC
  • Rated Current (Plug) : 13A (BS 1363)
  • Rated Current (Socket) : 16A (IEC 60309)
  • Frequency : 50Hz
  • IP Rating IP44 : (Splash-Proof)
  • Cable Type : 3-Core 230V Mains Cable (H05VV-F 3G1.5)
  • Cable Length : Approx. 200–260mm
  • Compliance : BS1363-1 / IEC60309-1 & IEC60309-2
  • Approvals : CE, UKCA, RoHS Compliant

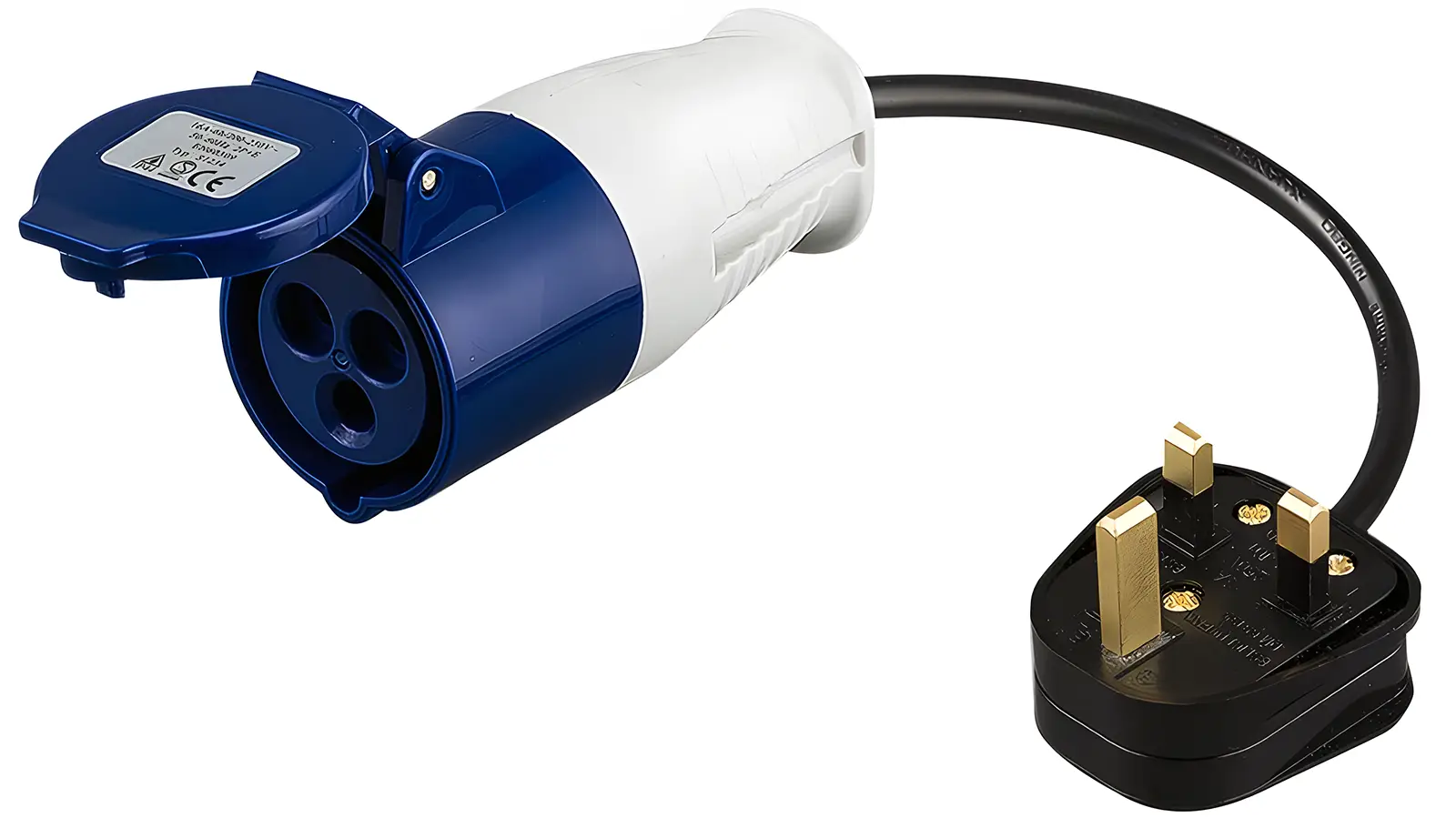

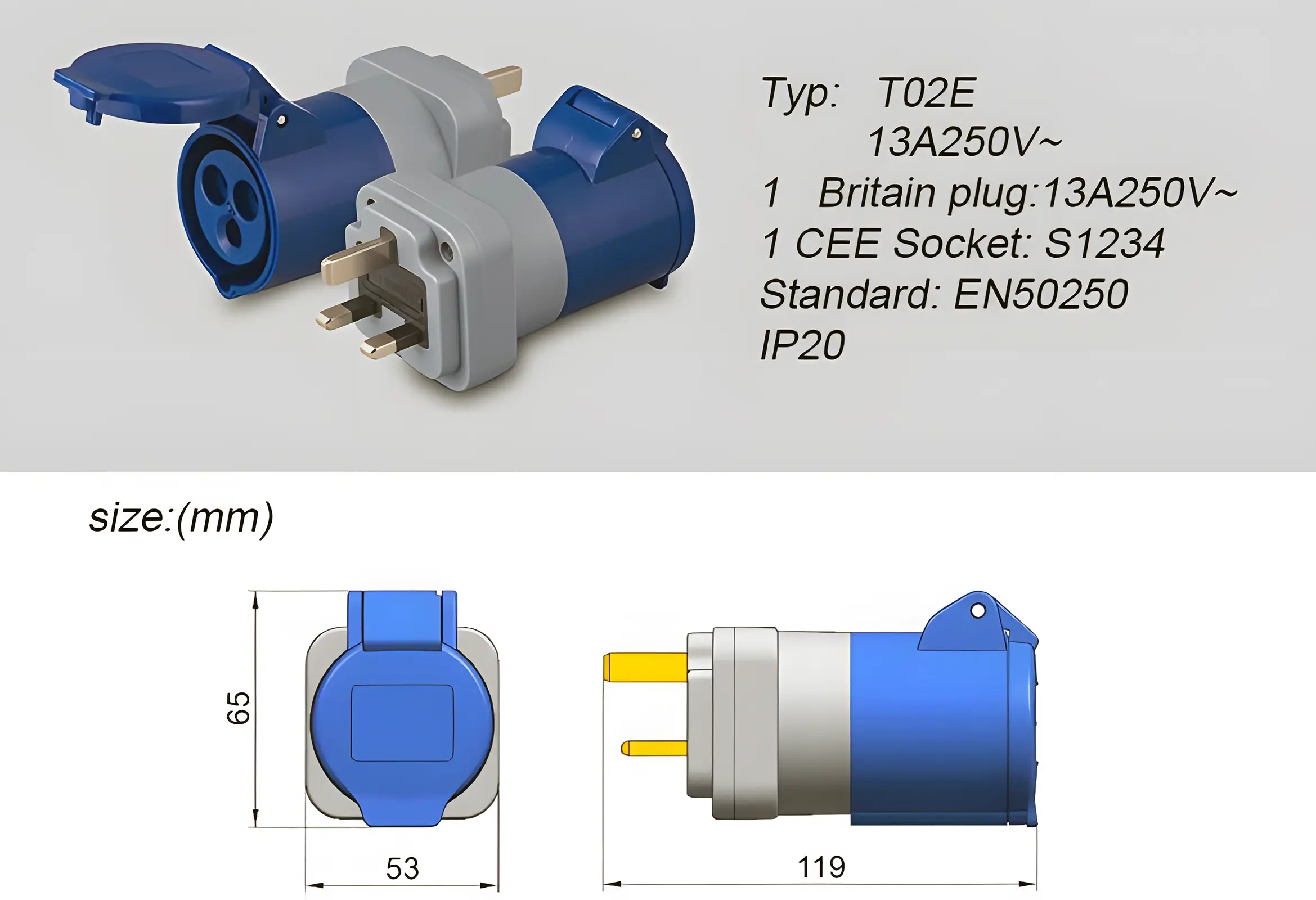

UK Plug Adapter Type G Plug to IEC 60309 Receptacle DrawingUK Adapter Cable Type G to IEC 60309 Connector

IEC 60309 Plug Adapter Manufacturer

Our Advantages as a Leading Plug Adapter Manufacturer

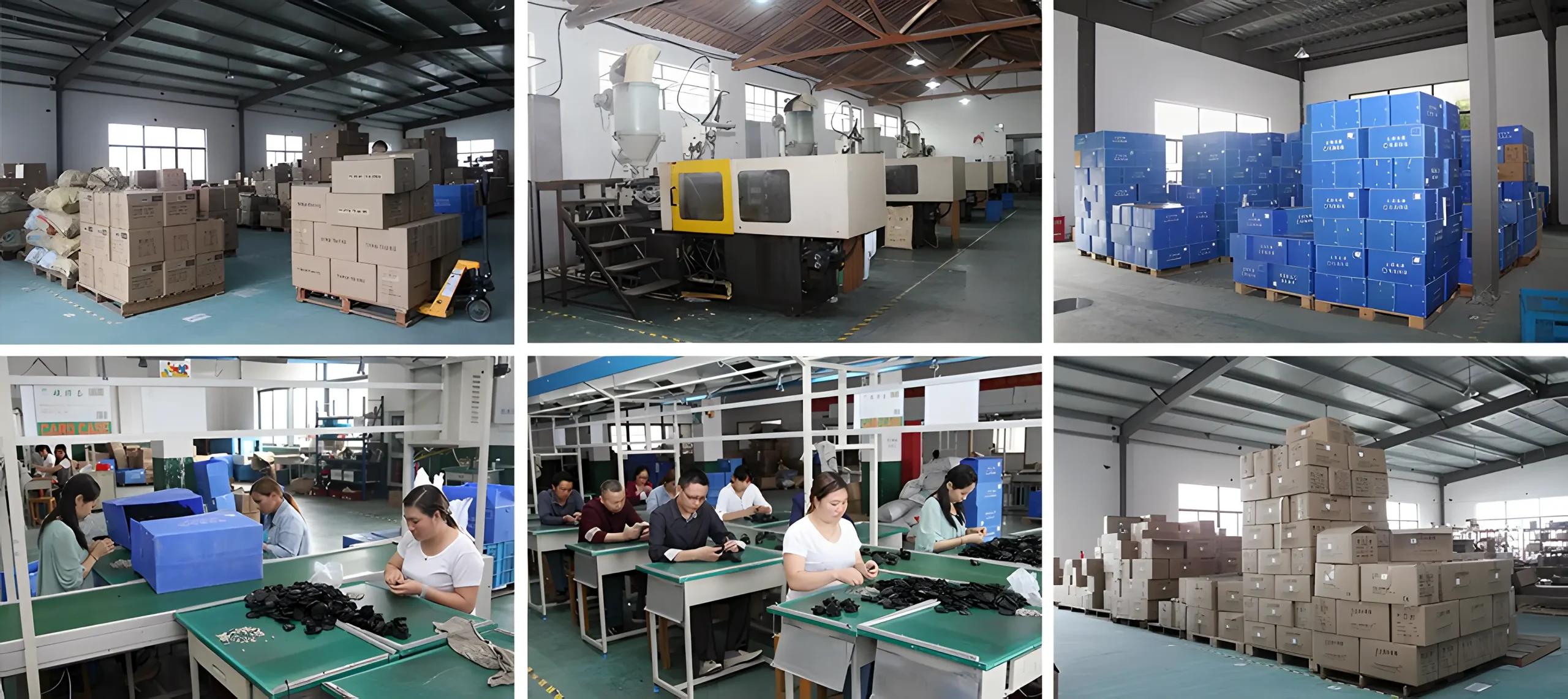

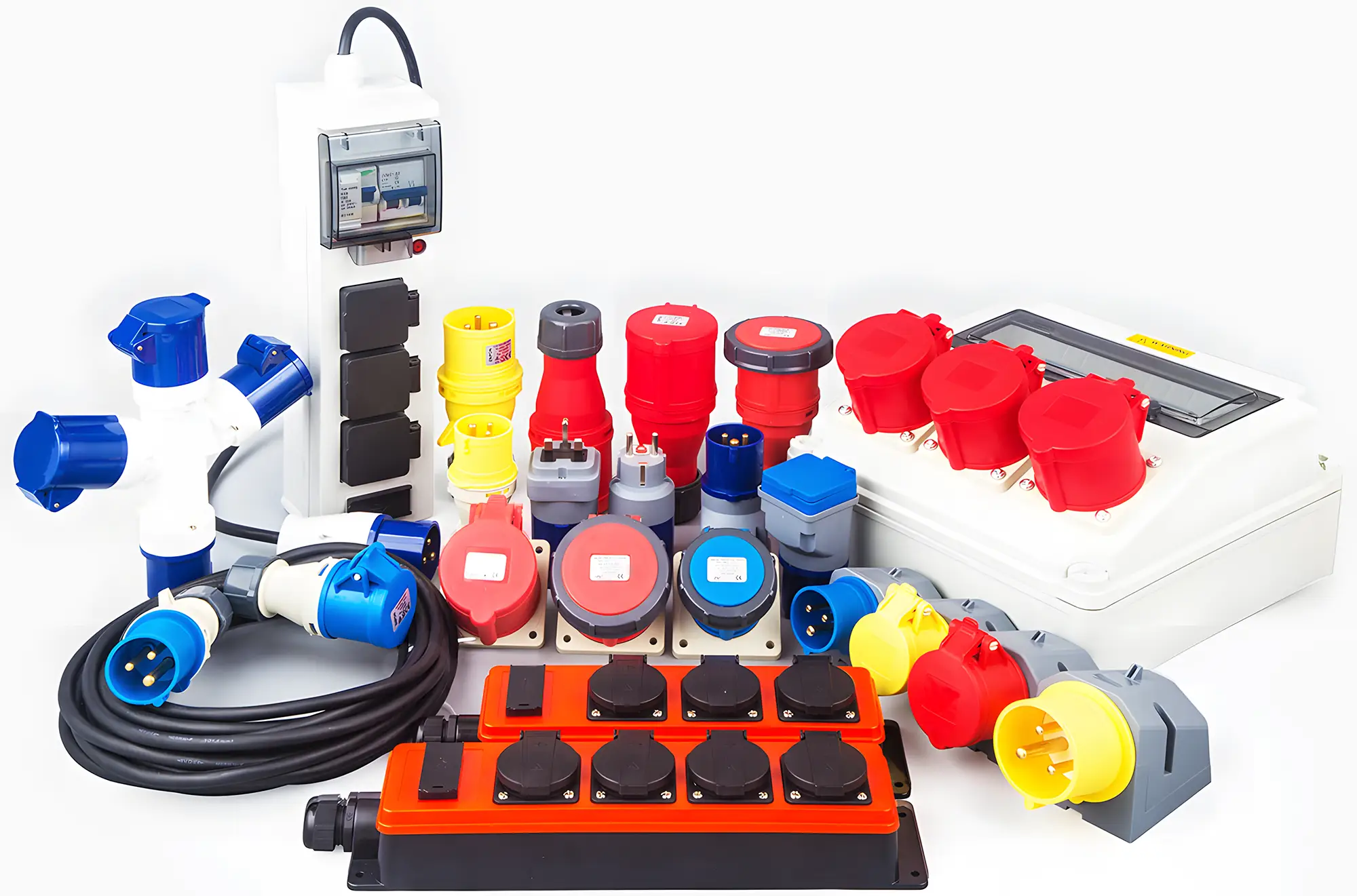

IEC 60309 Plug adapter China Manufacturer and Supplier

With 15+ years as a dedicated electrical plug, socket factory, we excel in producing types of plug adapter with CE, TUV that meet European demands:

  • Guaranteed Market Access: Our CE  certification eliminates compliance risks, speeding up your product approval process in European countries

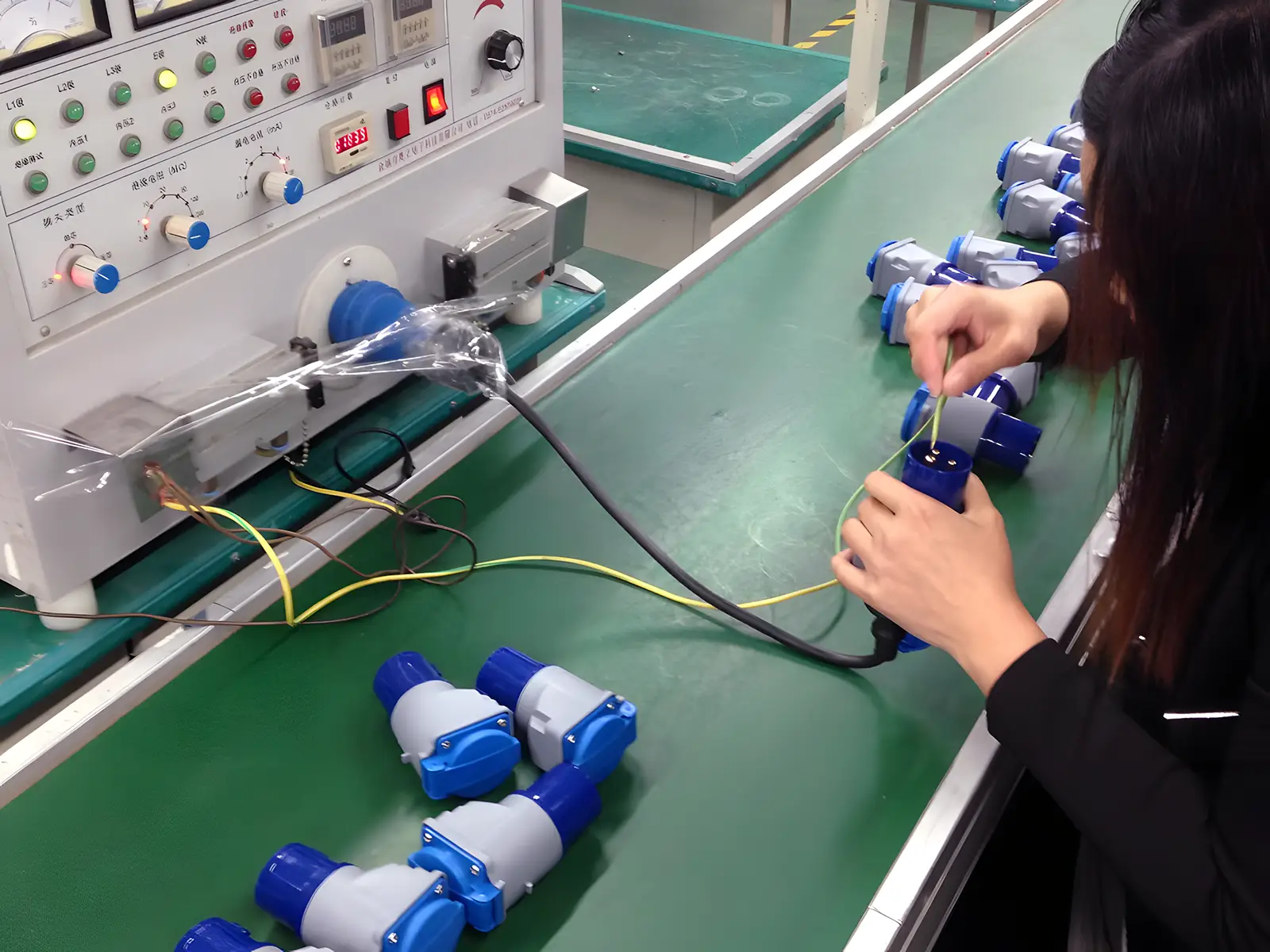

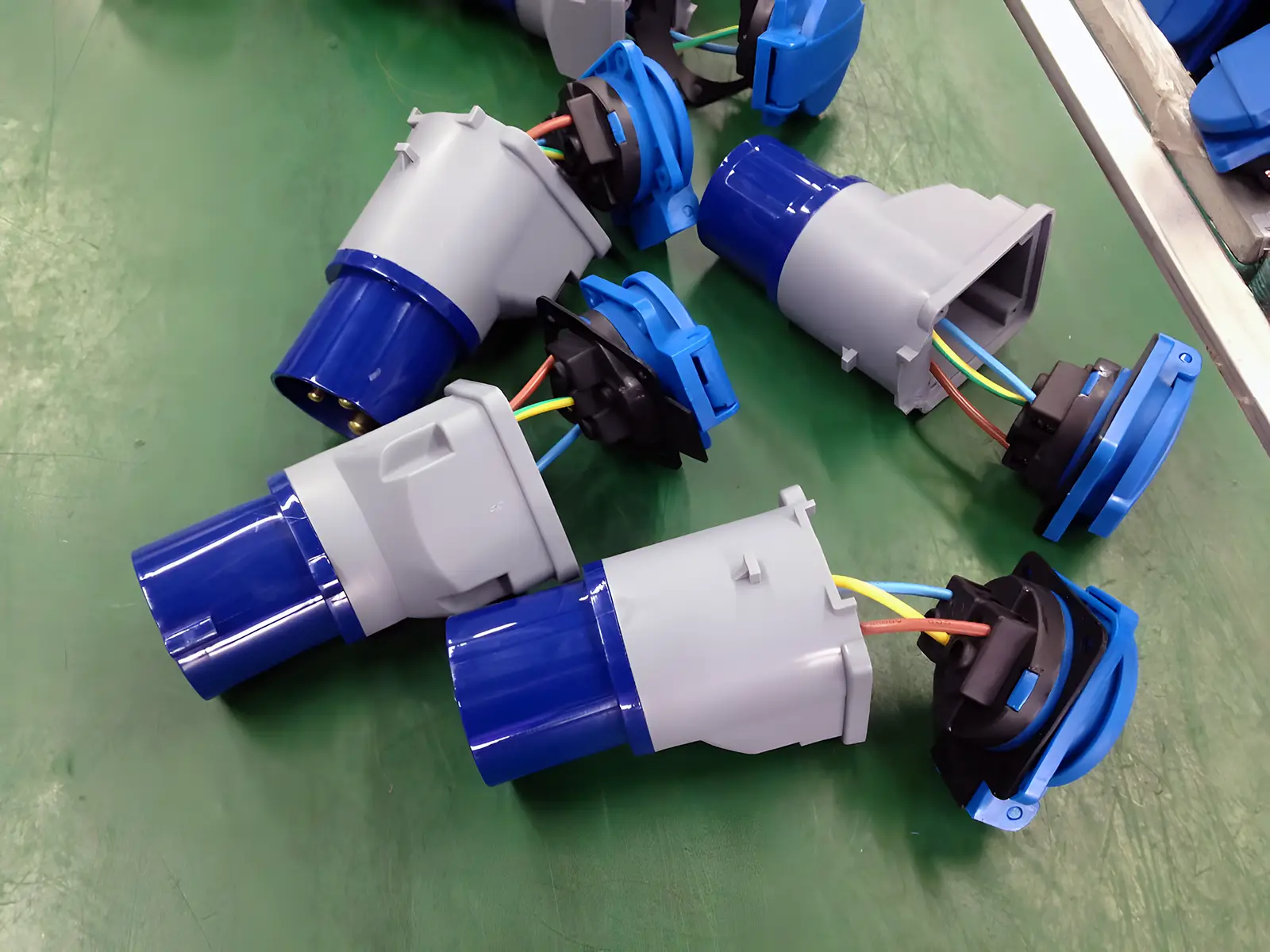

  • Precision Manufacturing: Produced in our ISO 9001-certified facilities with stringent quality control, including continuity, hi-pot, and insulation resistance tests.
  • Customization & Support: We offer OEM/ODM services for custom lengths, colors, and packaging. Benefit from rapid prototyping, low MOQs, and dedicated engineering support.
  • Cost-Effective Sourcing: As a direct manufacturer, we provide competitive pricing without compromising on quality or safety.
Sample availability

1-3 working days
MOQ

5 pieces for custom orders
Production lead time

10-15 working days

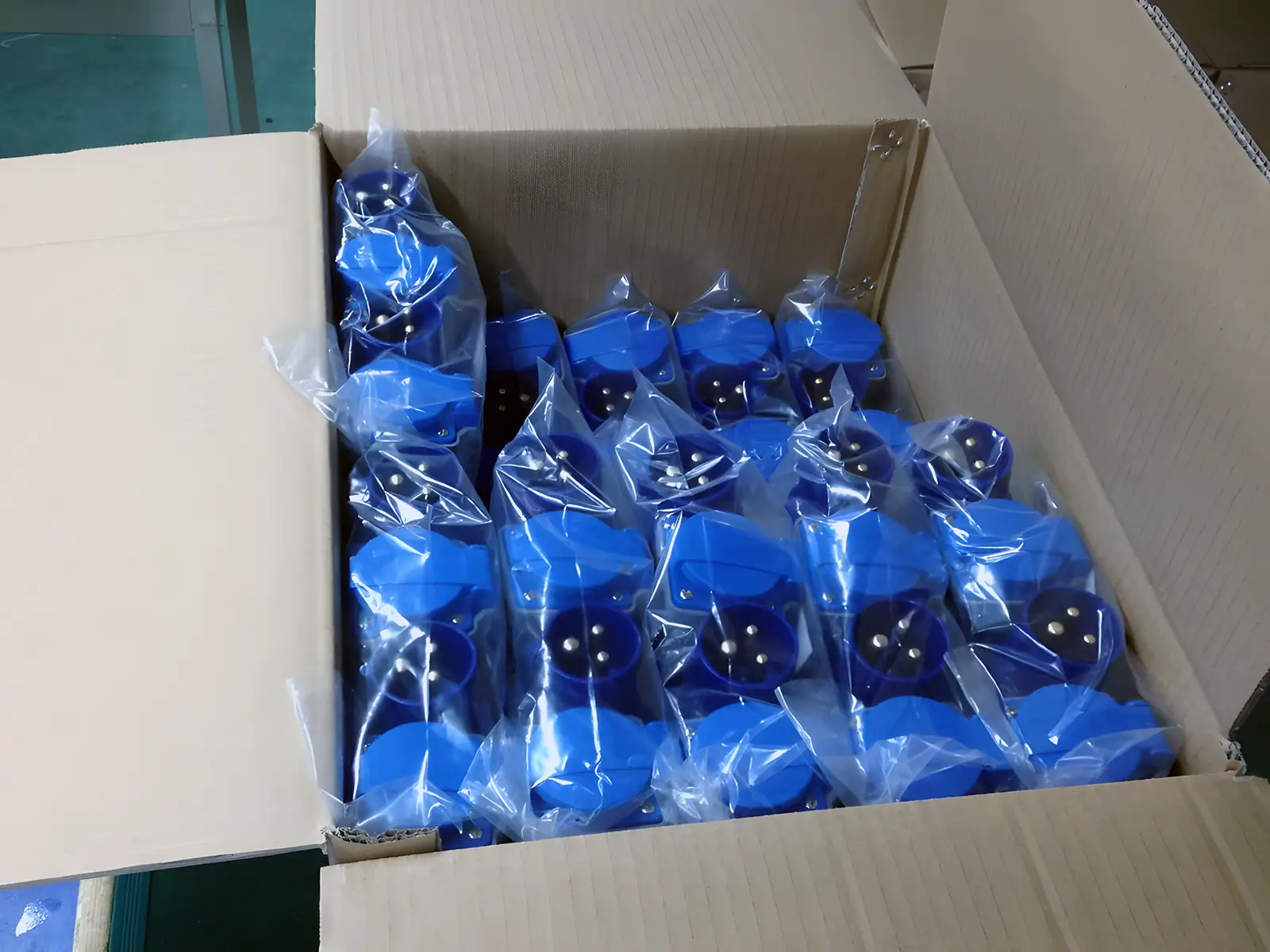

Export packaging standards

Export Cartons,or custom requirements, Pallets
