SABS Certified 6A 250V SANS 164-3 Standard 2-Pole 2-Pole or 3-Wire
Our South Africa 6A Power Cord designed specifically for the South African market. It complies with the mandatory SANS 164-2 Type N standard, featuring the distinctive small three-round-pin plug rated at 6A 250V. Designed for low-power electronic devices, this cord is available in both 2-wire (non-grounded) and 3-wire (grounded) configurations to meet different safety requirements.
Technical Specifications

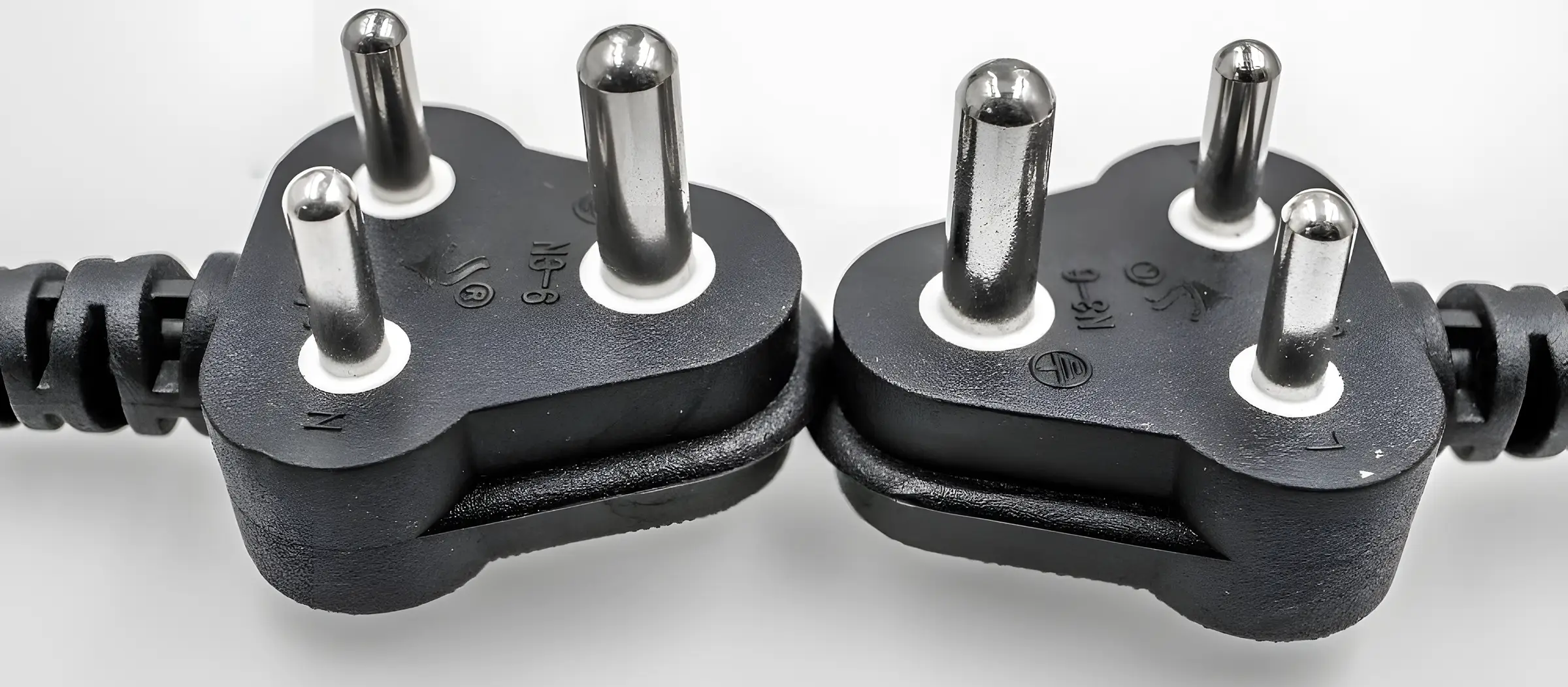

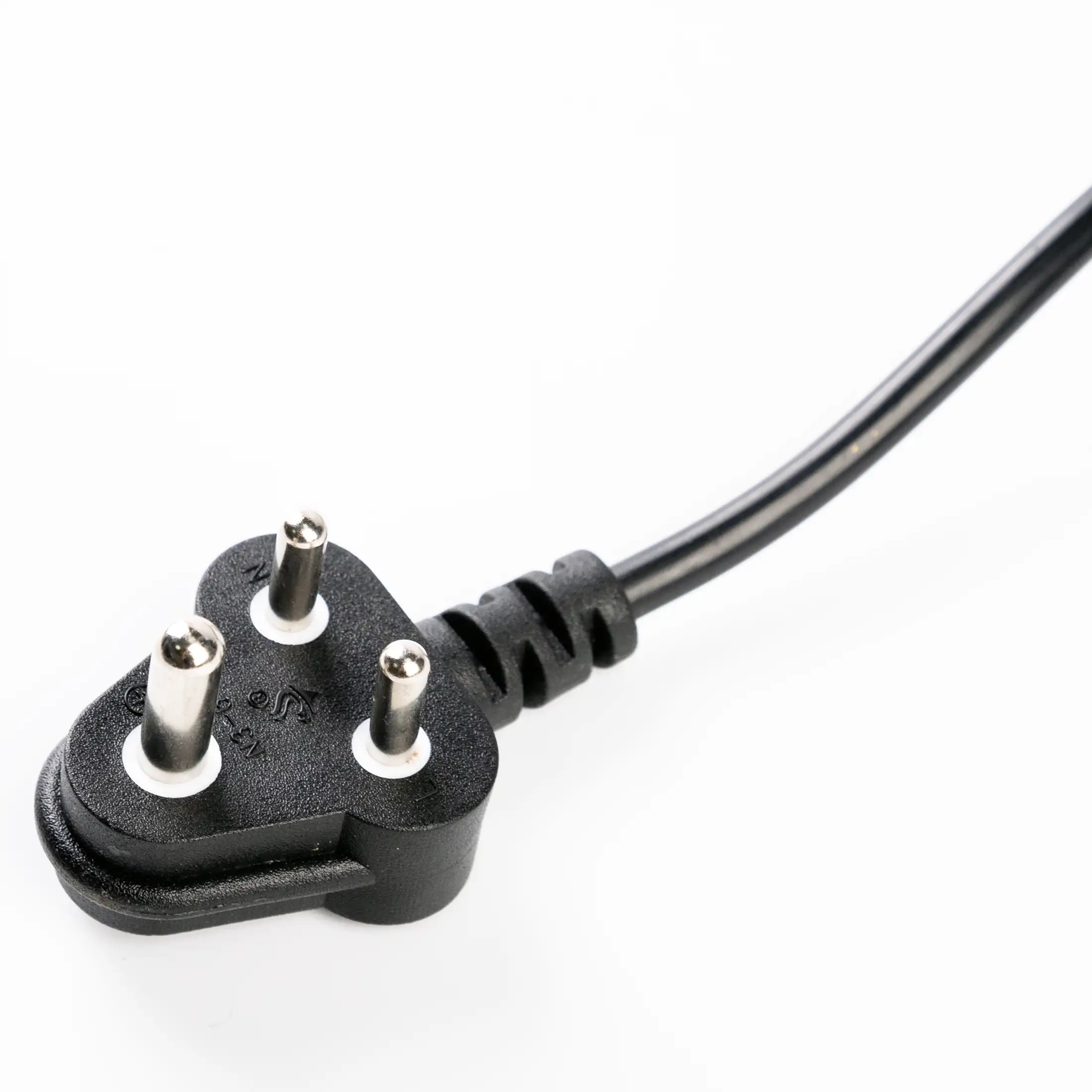

- Plug Type: South African Type N (Small Three-Round-Pin) (Type D old)
- Ratings: 6A 250V AC
- Configuration: 2-Pole or 3-wire
- Connector Options: Available with a wide range of IEC 60320 connectors including EC 60320 C7 (Figure-8) ,C7 Right Angle or C17 , C17 Right Angle IEC 60320 C-5, C-13, C13 Right Angle, C13 Left Angle, C-13 Locking
- Approvals: SABS
- Colors: Black White standard; custom available
- Applications: Grounded/un-grounded devices
- Operating Temperature: -10°C to +70°C
- Cable Length Options: Custom length
- Model Number: N3-6, D18
South African Custom Power Cord with Type N Plug
Tailor-Made South Africa 6A Power Cord for Your Unique Applications. We bring your custom power connector vision to life by modifying every element—cable materials including: Standard PVC: Cost-effective, abrasion-resistant. Rubber (H05RN-F / H07RN-F): Extreme flexibility and weather/oil resistance for outdoor or industrial use.Halogen-Free (LSZH): Low smoke, zero halogen—essential for data centers and enclosed public spaces.Textile Braided: Premium aesthetic for high-end audio or retro appliances.. We ensure a perfect fit and function with custom stripping, terminals, and strain reliefs. Partner with us for a cord that seamlessly integrates with your appliance.
Normal Stripped, Splitter and ROJ
We supply Africa AC power cords, the flexible cable other end can be stripped ,ROJ with custom length
Common Termination
South Africa 6A Power Cord one end molded with standard plugs, the opposite could be terminated with types of terminals such as grounding rings terminals ,fork with heat shrink or nylon insulated.
South African 6A Power Cord Molded with IEC 60320 Connector Options
These power cords can be terminated with a variety of IEC 60320 connectors to suit different equipment requirements:
2-Pole
3-Wire
South African 6A Power Cord Available with In-line Switches and Lamp Holder
These South African power cords are assembled with online switches for salt lamp power supply cords, custom switch types and online positions.
Dimmer On-line switches and E12,E14,E27 lamp sockets .
Power Cord Applications:
This power cord is ideal for a wide range of low-power household, office, and personal electronics, including:
- Mobile Phone and Laptop Chargers
- Desktop Computers and Monitors
- Printers and Networking Equipment
- Televisions, Radios, and Audio Systems
- Table Lamps and Small Household Appliances
Why Choose Cablesgo SABS Certified Power Cords
Our Advantages as a Leading Power Cord Manufacturer from China.
With 15+ years as a dedicated power cord factory, we excel in producing South African AC Power Cords with Type M Plugs
- Regulatory Compliance – Mandatory for legal sale and use of electrical equipment in South Africa
- Safety Assurance – The SABS mark is your trusted symbol of quality and safety
- Reliable Performance – Rated for 16A 250V high-load applications
- Application Flexibility – Available in both grounded and ungrounded configurations
- Global Export Ready – RoHS/REACH compliant for international markets
- Customizable – Tailored to your specific length, color, and connector requirements
2-year industrial warranty included; free samples for qualified OEMs. Contact our team for quotes or custom Molded Type G AC Cable builds!
Buy Direct from Factory Cablesgo manufacturers and supplies electrical AC power supply cords for use in South Africa and all Countries in the world. Our extensive and complete South Africa power cord line includes power receptacle outlets, Plug, weatherproof receptacle outlets, sockets, multiple outlet power strips, power supply cords, power cable wire, and plug adapters. Contact us for South African AC power cords as leading power cord manufacturer and supplier.all of South Africa power supply cords are approved by SABS with Rohs and Reach compliant.
Note: Non-Rewireable focus; Rewireable options available.
