SANS 164 Plug to IEC 60320 C15 Receptacle
The South African High Temp Power Cord with SANS 164 Plug to IEC C15 Connector is a premium, SABS-certified international power cable engineered for high-temperature environments in South Africa (and compatible with Type M outlets in India). It features a durable 3-pin SANS 164-1 plug on one end, compliant with South African National Standards (SANS), and an IEC 60320 C15 female connector on the other end, rated for up to 120°C operation. This cord is optimized for heat-generating devices such as servers, networking equipment, laser printers, and industrial appliances that require elevated temperature tolerance. Constructed with flexible H05VV-F PVC-insulated or H05RR-F Rubber-insulated wiring and oxygen-free copper conductors, it ensures reliable performance in demanding conditions up to 70°C ambient (with connector up to 120°C). Available in standard 10A configurations, it supports custom lengths and bulk production for OEM, wholesale, or specialized applications.
Technical Specifications
- Plug Type: SANS 164-1 (BS546) 3-prong, 16A/250V (larger plug) 6A/250V
- Female Connector Type: IEC 60320 C15 (3-pole, high-temperature rated) Support Straight or Right-angle and Locking versions.
- Electrical Ratings: 250V AC, 50Hz, 10A
- Configuration: 3-core wire (including ground wire).
- Safety Certification: SABS, VDE
- Colors: Black White standard; custom available
- Operating Temperature:Up to 70°C (cord); 120°C (connector)
- Applicable Cables: PVC or Rubber cables, Standard black or white jacket; custom colors (gray, silver, transparent) available.
- Cable Length Options: Customizable (0.5m–2.0m standard; up to 3m+). Common: 1.0m (3.3ft) for portability or 1.5m (5ft) for desk setups.
- Model Number: N3-16/HT3
Note: This model is fully SABS-certified as a complete assembly, suitable for high-temperature applications. For lower amperage (e.g., 6A with SANS 164-3 plug), custom variants are available but may have component-level approvals only.
SANS 164 Plug to IEC C15 Customization Options
We manufactures custom South African Type M plug to IEC 60320 C15 power cords as customers request from plug to flexible cable and receptacles as below:
- Plug: 6A or 16A SABS Plug, or Riwreable or Non-rewireable Type M plug
- Connector: IEC 60320 C15 (high-temperature variant), 3-pole female inlet. Supports right-angle, left-angle, or locking options for custom configurations; rated for 120°C continuous operation.
- Color: Standard black or white. Gray and custom colors are available upon request.
- Flexible Cable: PVC, Rubber, Halogen-Free, or Textile Braid, Spring Coiled PU cables are available.
- Features: Options include inline switches or Leakage Protector Plug ,inline GFCI (RCD) modules for added safety.
- Packaging and bulk production—Custom packaging; minimum order quantity varies by specs.

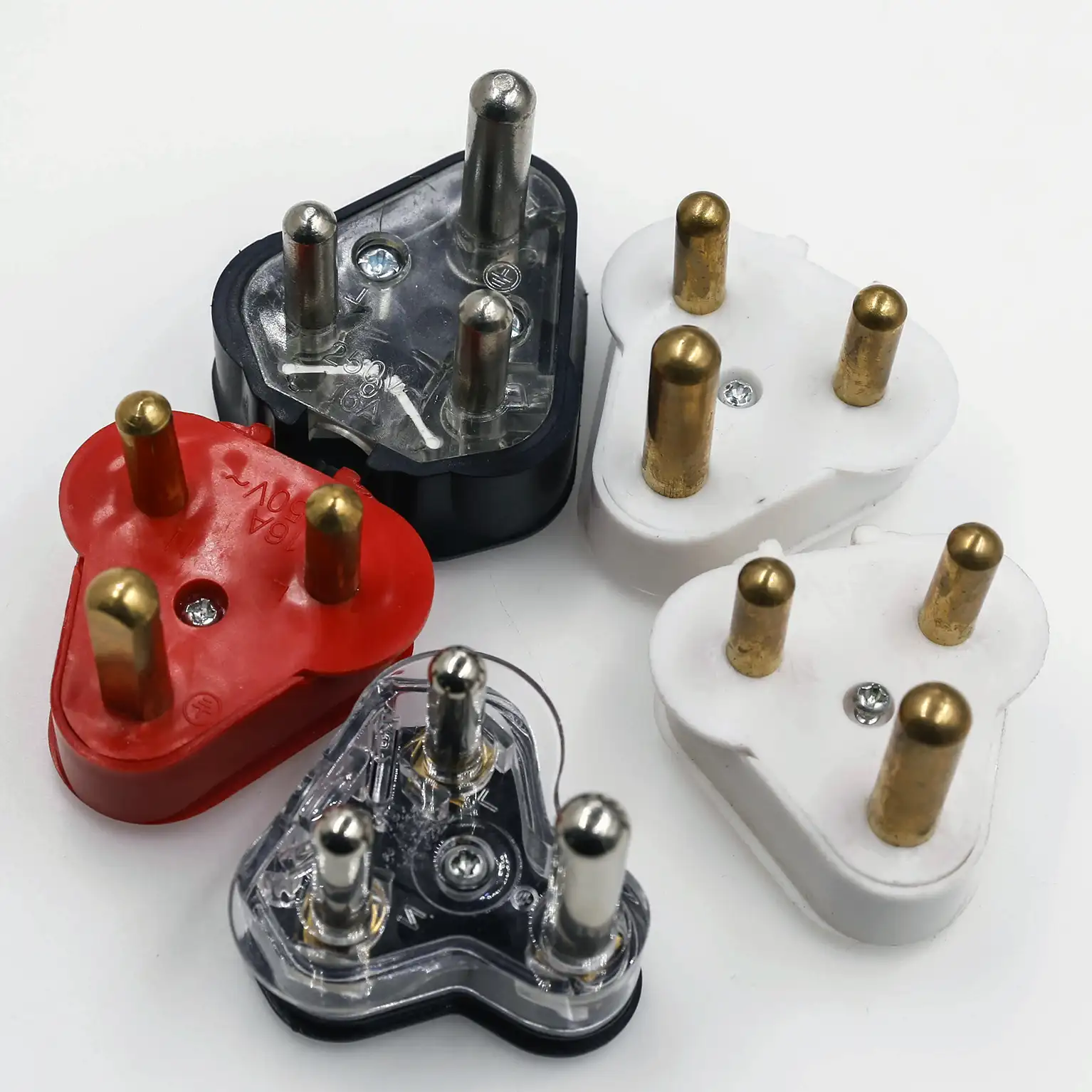

South African Plug Available
Available IEC C15 Variants
We made standard straight IEC C15 and also provide Right Angle IEC C15, Locking IEC C15 connectors available.
South African High Temp Power Cord Applications
This cord is specifically designed for appliances that generate significant heat, including:
- Network Switches & Routers (especially rack-mounted enterprise gear)
- Server PDU Inlets (Power Distribution Units)
- Industrial Equipment
- Professional Audio/Video Power Amps
- Commercial Kitchen Appliances
- Scientific and Laboratory Equipment
- Gaming Consoles & High-Performance Computing (under heavy load)
Important Note: *The IEC C15 connector is physically compatible with a standard IEC C13 inlet (found on most computers), but it should only be used where the high-temperature rating is required. Using a standard C13 cord in a C15 high-temperature application is a fire hazard.*
South African Plug IEC C15 Power Cord Manufacturer
Our Advantages as a Leading Power Cord Manufacturer
With 15+ years as a dedicated power cord factory, we excel in producing South Africa AC Power Cord with South African Type D / M Plug
- Guaranteed Market Access: Our SABS certification eliminates compliance risks, speeding up your product approval process in South Africa.
- Precision Manufacturing: Produced in our ISO 9001-certified facilities with stringent quality control, including continuity, hi-pot, and insulation resistance tests.
- Customization & Support: We offer OEM/ODM services for custom lengths, colors, and packaging. Benefit from rapid prototyping, low MOQs, and dedicated engineering support.
- Cost-Effective Sourcing: As a direct manufacturer, we provide competitive pricing without compromising on quality or safety.
In summary:This dual-certified (SABS/VDE) electric cord is the ideal, safe, and compliant choice for powering high-temp appliances and related equipment in South Africa. Its high-quality construction and universal compatibility offer users great convenience and peace of mind.
2-year industrial warranty included; free samples for qualified OEMs.For technical drawings, full SABS reports, or samples, consult supplier resources. Contact us for tailored quotes.
Buy Direct from Factory Cablesgo manufacturers and supplies electrical AC power supply cords for use in South Africa and all Countries in the world. Our extensive and complete South Africa power cord line includes power receptacle outlets, Plug, weatherproof receptacle outlets, sockets, multiple outlet power strips, power supply cords, power cable wire, and plug adapters. Contact us for South African AC power cords as leading power cord manufacturer and supplier.all of South Africa power supply cords are approved by SABS with Rohs and Reach compliant.
Note: Non-Rewireable focus; Rewireable options available.
